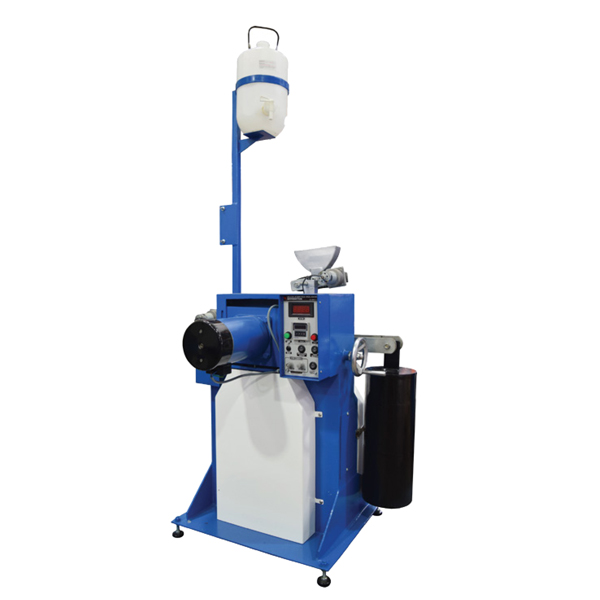

Accelerated Polishing Apparatus
Our Price
- The apparatus is used for determining resistance of aggregates used for road wear caused by polishing action of vehicle tyres on a real surface.
- It used to prepare aggregate samples for testing resistance by using Skid Resistance Apparatus.
- Maximum of 14 special fabricate specimen moulds and then mounted on a metal wheel and specimens are brought into contact with a rubber tyred wheel and by increasing loads during operation.
Ready to Ship
Description
Physical & Performance
| Standard | BS 812:114, EN 1097-8, NF D18-575T |
| Dimension | 540 (L) x 630 (W) x 1600 (H) mm |
| Road Wheel Rotation Speed | 320 r / min |
| Rubber Wheel Outer Diameter | 203 mm |
| Air Pressure | 0.3 Mpa |
| Rubber Wheel Hardness | 55 ± 5IRHD |
| Road Wheel Outer Diameter | 406 mm |
| Measuring Speed | 1 m / s |
| Approx. Weight | 165 kg |
| Power | 415 V, 1 ph, 50 / 60 Hz |
For detailed specifications refer to the Product Brochure.
NL Scientific
Accelerated Polishing Apparatus
The apparatus is used for determining resistance of aggregates used for road wear caused by polishing action of vehicle tyres on a real surface. It used to prepare aggregate samples for testing resistance by using Skid Resistance Apparatus. Maximum of 14 special fabricate specimen moulds and then mounted on a metal wheel and specimens are brought into contact with a rubber tyred wheel and by increasing loads during operation.
