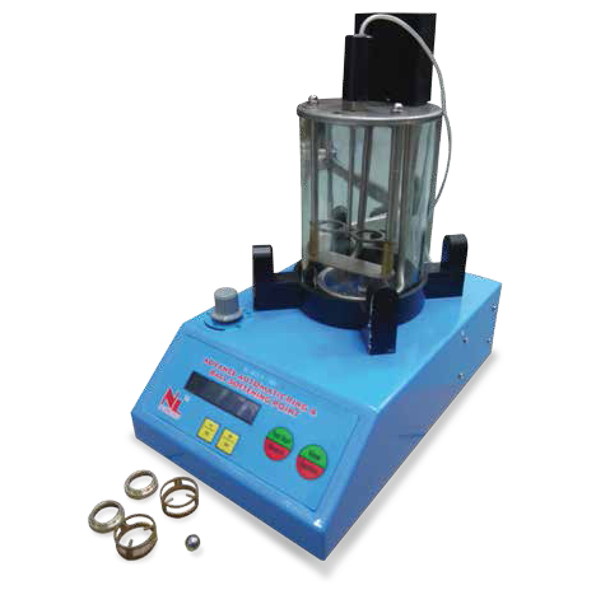

Advance Automatic Ring & Ball Softening Point Apparatus
Our Price
- Used for determining the softening point of bituminous material. Newly invented with portable & compact design.
- Equip with 2 laser sensor detected ball fall automatically determined the softening point at asphalt.
- Supplied WITHOUT mini printer.
Ready to Ship
Description
- Automatic laser sensor detector unit
- Enable auto or manual test operation
- Adjustable magmatic stirrer
- Mini printer connection port
- Enable connected to NL mini printer for instant print out 3 groups average test result
Physical & Performance
| Standard | EN 1427, ASTM D36, AASHTO T53 |
| Temperature Accuracy | ±0.2°C |
| Temperature Range | -5°C to 125°C |
| Temperature Increase Timing | 5°C / min (Adjustable) |
| Timing Accuracy | 1 second |
| Timing Setting Range | 0-99 min, 99 seconds |
| Dropping Distance | 25.4 mm |
| Product Dimension | 280 (L) x 180 (W) x 295 (H) mm |
| Carry Case Dimension | 365 (L) x 240 (W) x 220 (H) mm |
| Approx. Product Weight | 3.5 kg |
| Approx. Packing Weight | 4.0 kg |
| Power | 220 V, 1 ph, 50 / 60 Hz, 800 W |
For detailed specifications refer to the Product Brochure.
NL Scientific
Advance Automatic Ring & Ball Softening Point Apparatus
Used for determining the softening point of bituminous material. Newly invented with portable & compact design. Equip with 2 laser sensor detected ball fall automatically determined the softening point at asphalt. Supplied WITHOUT mini printer.
