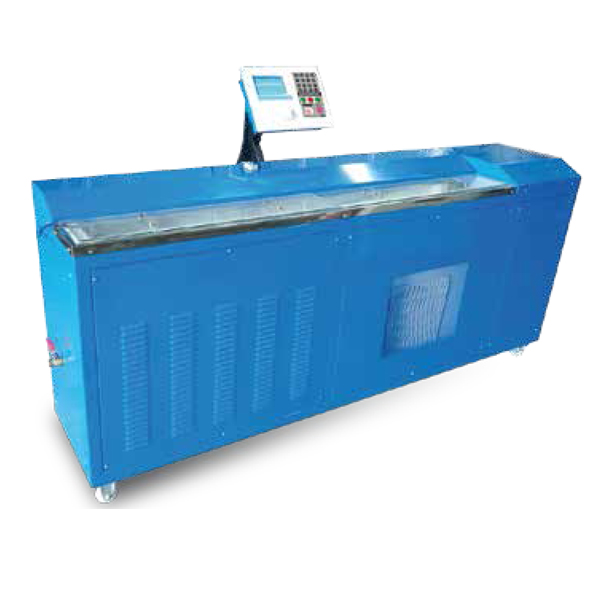

Advanced Digital Ductilometer (Tensile Load Series)
Our Price
- Latest upgraded product for determine the bituminous ductility.
- By measuring the elongation before breaking when two end of briquettes specimen are pull apart at a specified speed temperature.
- Single specimen with tension load result supplied WITHOUT briquettes moulds.
Ready to Ship
Description
- 2 speed setting for elongation movement
- High accuracy LED test parameter
- Using double ball screw with servo motor for uniform movement
- Save up to 10 groups test result
- Fitted with immersion electric heater, coiling coil & circulating pump unit
- Built in Mini printer for instant print out 3 groups
average test result - 1000N (Newton Load Cell with Mould Guide Piece)
Technical Specifications:
| Standard | EN 13398, ASTM D133, AASHTO T51 |
| Max. Carriage Displacement | 1500 mm |
| Displacement Accuracy | 1 mm |
| Temperature Range | 5 – 40°C |
| Temperature Accuracy | ±0.1°C |
| Test Speed | 10 x 50 mm / min |
| Tension Load | 1000 N (Newton) |
| Cooling Power | 1200 W |
| Heating Power | 3800 W |
| Nos. of Specimen Carriage | Standard and 1 with Load Cell |
| Product Dimension | 2120 (L) x 440 (W) x 970 (H) mm |
| Packing Dimension | 2130 (L) x 5400 (W) x 1200 (H) mm |
| Approx. Product Weight | 158 kg |
| Approx. Packing Weight | 170 kg |
| Power | 220 V, 1 ph, 50 / 60 Hz |
For detailed specifications refer to the Product Brochure.
NL Scientific
Advanced Digital Ductilometer (Tensile Load Series)
Latest upgraded product for determine the bituminous ductility. By measuring the elongation before breaking when two end of briquettes specimen are pull apart at a specified speed temperature. Single specimen with tension load result supplied WITHOUT briquettes moulds.
