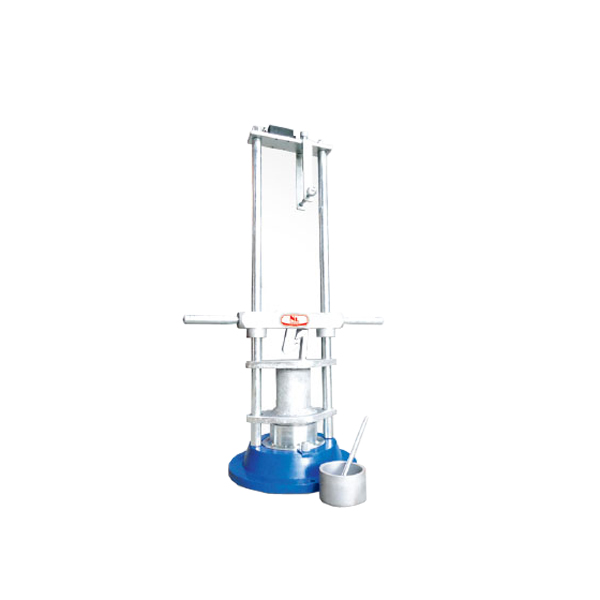

Aggregate Impact Value Apparatus
Our Price
- The apparatus is used to determine the aggregate impact value which provides a relative measure of the resistance of an aggregate to sudden shock or impact.
- The apparatus construct by strong rigid steel frame and mechanical blow counter.
Email when stock available
Description
Technical Specifications
| Standard | BS 812, NF P18-574 |
| Model Number | NL 1002 X / 001 |
| Dimension (mm) | 510 (L) x 300 (W) x 940 (H) |
| Approx. Weight | 45 kg |
Unit Consists Of
| Model Number | Parts Description | Qty |
| NL 1002 X / 001 – P 001 | Cylindrical Mould Ø 102 x 50 mm | 1no. |
| NL 1002 X / 001 – P 002 | Cylindrical Measure Ø 75 x 50 mm | 1unit. |
| NL 1002 X / 001 – P 003 | Tamping Rod | 1no. |
Optional Accessories
| Model Number | Accessories Description |
| NL 1002 X / 001 – P 004 | Cylindrical Mould Ø102 x 52 mm (NF Std) |
For detailed specifications refer to the Product Brochure.
NL Scientific
Aggregate Impact Value Apparatus
The apparatus is used to determine the aggregate impact value which provides a relative measure of the resistance of an aggregate to sudden shock or impact. The apparatus construct by strong rigid steel frame and mechanical blow counter.
