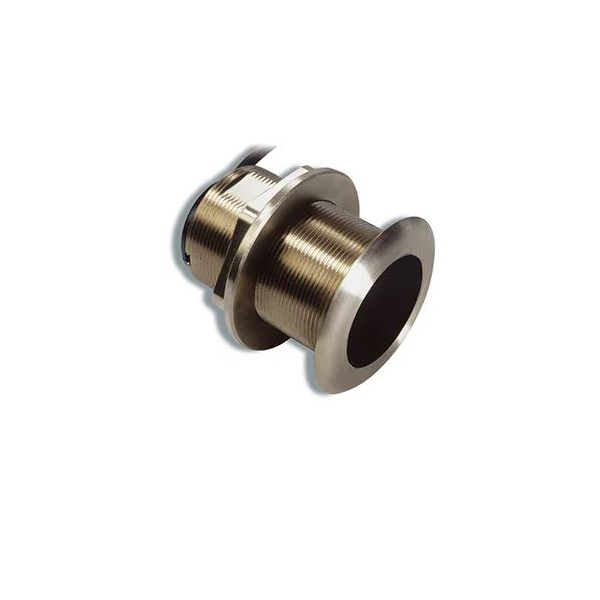

Airmar B60 (Bronze Transducer)
- Watt (600) အစွမ်းရှိ ရေအောက်ကြည့် Sounder (မျက်စိ)
- လှိုင်းလွှင့်အား (၂) မျိုးဖြင့် အသုံးပြုနိုင်ခြင်း။
- ရေအောက်အနက် ပေ (၁၂၀၀) အထိ အသုံးပြုနိုင်ခြင်း။
Description
This entry-level tilted bronze transducer accommodates deadrise angles of 8 to 15 degrees without a fairing.
An excellent choice for fiberglass and wood hulls, this 600 W 8-pin transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees.
General
| FREQUENCY | 50/200 kHz |
| POWER | 600 W |
| BEAMWIDTH | 45°/12° |
| MAXIMUM DEPTH | 800-1,200 ft. |
| DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
| NUMBER OF PINS | 8-pin |
| CABLE LENGTH | 33 ft. |
| SUPPORTED DEADRISE/TRANSOM ANGLES | 8°-15° degree deadrise |
For detailed specifications refer to the Product Brochure.
GARMIN
Airmar B60 (Bronze Transducer)
This entry-level tilted bronze transducer accommodates deadrise angles of 8 to 15 degrees without a fairing. An excellent choice for fiberglass and wood hulls, this 600 W 8-pin transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees. Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
