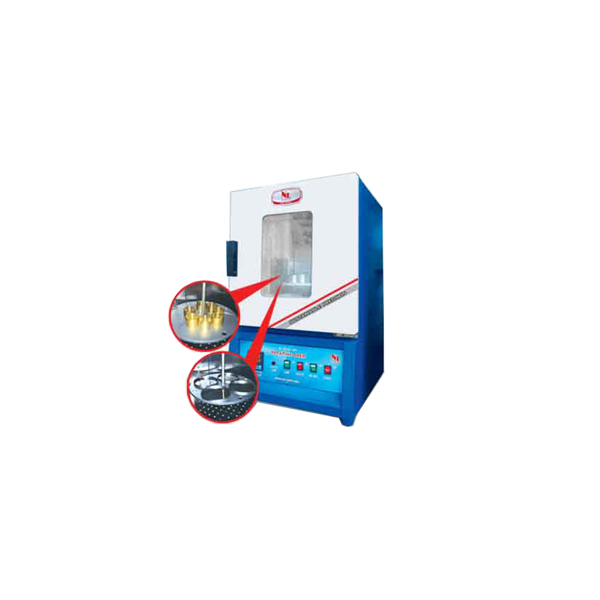

Asphalt Rotating Plate Oven
Our Price
- Used for determining the loss in mass of oil and bituminous and the effect of heat and air on a film of semisolid bituminous material.
- Internal chamber are fully stainless steel with thick isolated fibreglass.
- External casing coated with hard wearing paint & having glass viewing door.
Code : NL 2021 X / 001
Ready to Ship
Description
Technical Specifications
| Standard |
EN 12607-2, EN 13303, ASTM D6, D1754, AASTHO T47, T179, BS 2000, UNE 7110, NF T66-011 |
| Working Temperature | 163°C |
| Working Space | 400 x 400 x 430 mm |
| Plate Rotating Speed | 5 r.p.m. |
| Temperature Fluctuation | ±0.5°C |
| Product Dimension | 660 (L) x 535 (W) x 890 (H) mm |
| Packing Dimension | 760 (L) x 635 (W) x 1090 (H) mm |
| Approx. Product Weight | 58.5 kg |
| Approx. Packing Weight | 69 kg |
| Power | 220 V, 1 ph, 50 / 60 Hz, 2500 W |
Unit Consists Of
| Model Number | Parts Description | Qty |
| NL 2020 X / 001 – P 002 | ASTM 13 C Thermometer | 1no. |
| NL 2021 X / 001 – P 001 |
Determination Off Loss on Heating (9 Sample Container Ø 55 x 33 mm) |
1set |
| NL 2021 X / 001 – P 001 |
Determination Off Thin Film (4 Sample Container Ø 140 x 9.5 mm) |
1set |
For detailed specifications refer to the Product Brochure.
NL Scientific
Asphalt Rotating Plate Oven
Used for determining the loss in mass of oil and bituminous and the effect of heat and air on a film of semisolid bituminous material. Internal chamber are fully stainless steel with thick isolated fibreglass. External casing coated with hard wearing paint & having glass viewing door.
