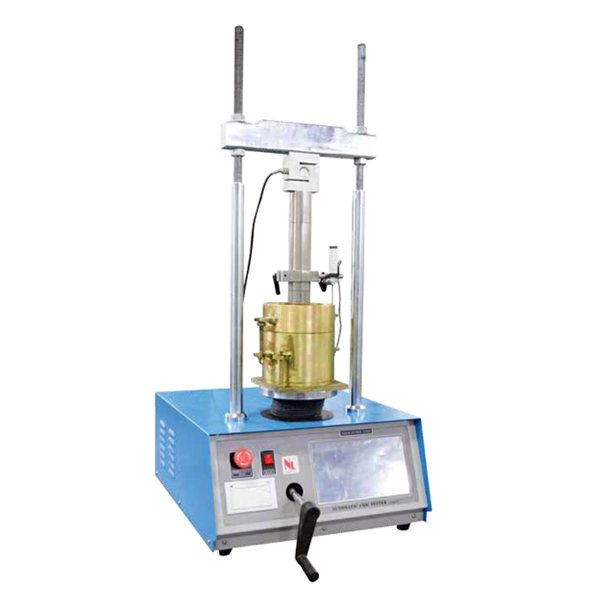

Auto CBR Tester
Our Price
- New Touch Screen controller with rigid and compact design.
- By using server Drive System to achieve more reliable and high accurate testing results.
Ready to Ship
Description
- Large touchscreen display for viewing real-time graph and test data
- Emergency stop button
- Compact, bench mounting design
- Energy saving with Servo Motor
- Less vibration & noise during operation
- Rapid platen adjustment
Technical Specifications:
| Model Number | NL 5002 X / 007A |
| Capacity | 50 kN |
| Testing Speed | 1.27 mm / min (ASTM),1 mm/min (BS) |
| Vertical Clearance | 690 mm max |
| Horizontal Clearance | 270 mm |
| Product Dimension (mm) | 565 (L) x 505 (W) x 1110 (H) |
| Approx. Product Weight | 93 kg |
| Power Supplied | 220 V, 50/60 Hz, 0.5hp, 370 W, 0.45A |
For detailed specifications refer to the Product Brochure.
NL Scientific
Auto CBR Tester
New Touch Screen controller with rigid and compact design. By using server Drive System to achieve more reliable and high accurate testing results.
