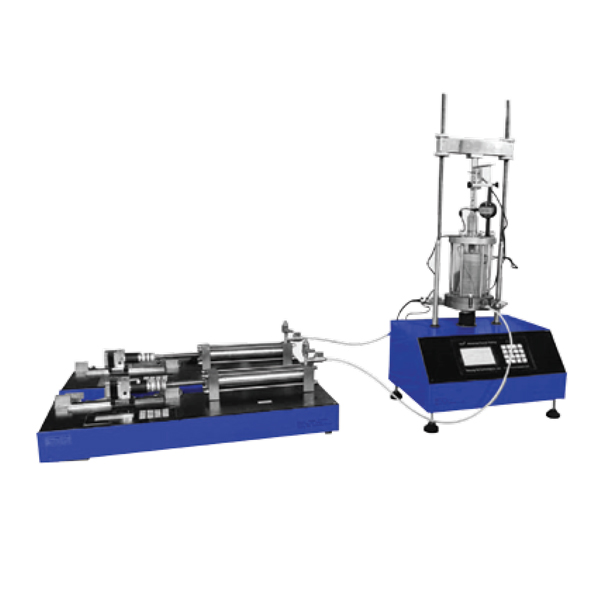

Automatic Triaxial System
Our Price
- Fully automated triaxial system specifically designed for soil testing laboratories for conducting UU,CU, and CD Triaxial and also unconfined test.
- During building constructions,excavating,tuneeling and similar applications have several effects on the subsoil structures and these effects are succesfully simulated with Triaxial.
- Our triaxial system are fully automated tests on cylindical undisturbed and remoulded soil sample.
Ready to Ship
Description
Triaxial Loading Frame:
| Standard | BS1377-7,1924-2,ASTM D2850,D4767,AASHTO T296,T297 |
| Model Number | NL 5019 X / 002 |
| Capacity | 10kN |
| Speedrange | 0.00001 – 9.9999 mm/min |
| Platen Travel | 80 mm |
| Max. Vertical Clearance | 1100 mm |
| Approx. Dimension (LxWxH) | 450 x 450 x 1350 mm |
| Power | 220V, 1ph, 375W, 50/60 Hz |
| Approx. Weight | 95 kg |
For detailed specifications refer to the Product Brochure.
NL Scientific
Automatic Triaxial System
Fully automated triaxial system specifically designed for soil testing laboratories for conducting UU,CU, and CD Triaxial and also unconfined test. During building constructions,- excavating,tuneeling and similar applications have several effects on the subsoil structures and these effects are succesfully simulated with Triaxial. Our triaxial system are fully automated tests on cylindical undisturbed and remoulded soil sample.
