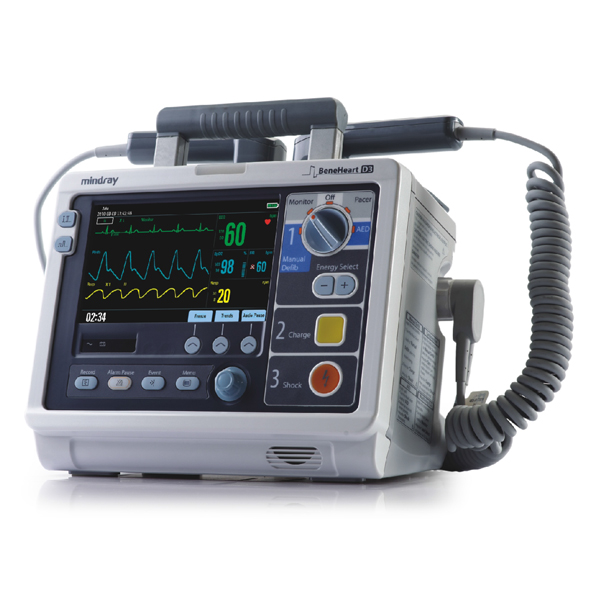

Defibrillator, 4-in-1, 7′ Colour Display, BeneHeart D-3
Our Price
- BeneHeart D3 is one compact , durable, light weighted defibrillator which integrated monitoring,manual defibrillation,AED and pacer.
- It is a professional biphasic defibrillator-monitor suitable for hospitals and clinics use worldwide.
Ready to Ship
Description
Key Features:
Technical Specifications
| Dimensions | 288mm(w)x203mm(d)x275mm(h) |
|
Weight |
Main unit: 4.7 kg

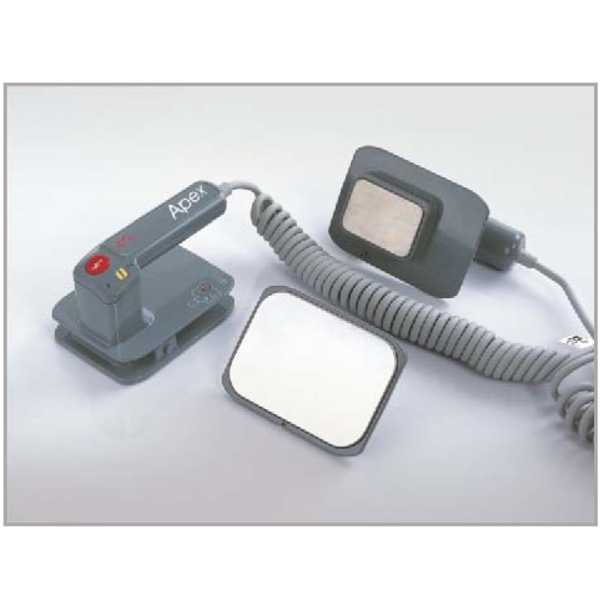

Battery package (each): 0.54kg External paddle set: 0.86 kg |
| Water Resistance | IPX4 (without external power) |
| Solids Resistance | IP4X |
| Temperature | Operating: 0 to 45 ºC Storage: -30 to 70 ºC |
| Humidity | Operating / Storage: 10 to 95%.non-condensation |
| Altitude | Operating / Storage: -381m to +4575 m |
| Shock and Vibration | Meets the requirements of 21.102, ISO9919 (Shock and vibration for transport) |
| Bump | Meets the requirements of 6.3.4.2, EN1789 (Medical devices for use in road ambulances) |
| Free fall | Meets the requirements of 6.3.4.3, EN1789 (Height of fall: 0.75 m) |
| EMC | Meets IEC60601-1-2 |
| Safety | Meets EN/IEC 60601-1 |
| Display | Type: TFT Colour LCD Dimensions: 7 inch Resolution: 800×480 pixels Display Waveforms: Max. 3 channels Wave Viewing Time: Max. 16 s (ECG) |
| AC Power | Line voltage: 100 to 240 V~ (±10%) Current: 1.8 to 0.8 A Frequency: 50/60 Hz (±3 Hz) |
| DC Power (through DC-AC Inverter) | Input voltage: 12 VDC Power Consumption: 190 W |
|
Battery |
Type : 15.1V, 5600mAh, rechargeable lithium ion battery pack.
Number : 1 Charge time: Less than 3 hours to 90% and less than 4 hours to 100% with equipment power of. Capacity Indicator : 5-segment led indicator for fast battery capacity evaluation. |
For detailed specifications refer to the Product Brochure.
Mindray
BeneHeart D3
is one compact , light weight defibrillator integrated monitoring , manual defibrillation , AED and pacing. This brilliant device makes doctors’ dream come to reality.
Every doctor has a DREAM, to save more lives……
Defibrillate save
Reliable
Easy to use
Approachable data
Monitoring more
