BeneHeart R12 , ECG (Electrocardiogram)
Our Price
- BeneHeart R12 delivers rapid and accurate ECG diagnosis to help you meet a variety of clinical demands.
- The paperless mode delivers faster patient testing and reduces the use of ECG paper whilst also saving you time.
Ready to Ship
Description
Features
BeneHeart R12 delivers rapid and accurate ECG diagnosis to help you meet a varity of clinical demands.
Environment and Modernization
- Paperless process delivers faster patient testing and reduces the use of costly ECG paper
- Full print preview image helps you decide if an immediate repeat of an ECG recording is needed, giving you a faster workflow than ever before;
- Preview image for instantaneous on-screen review allows you to send data to the ECG management system without printing;
- Review on screen helps you to retrieve previous ECG reports at any time.
Quality and Performance
- Easy to use technology saves you time
- 8-inch high-resolution colour display
- Optional touchscreen
- User friendly workflow buttons
- Modern designed soft touch hotkeys

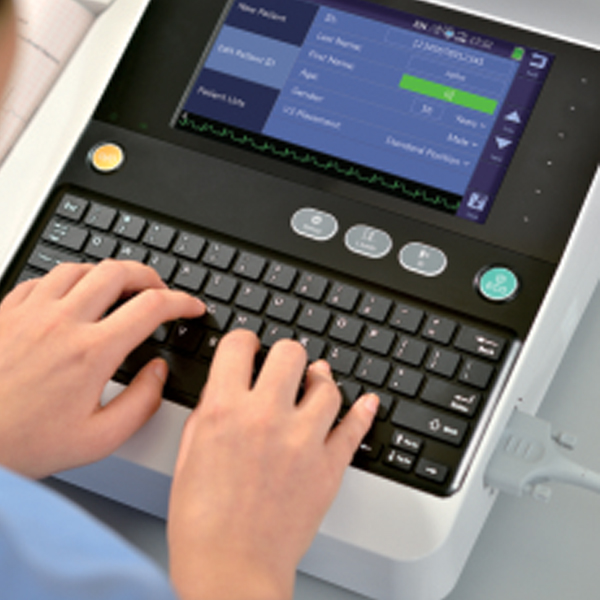

- Standard keyboard layout
- Patient demographics can be retrieved from the worklist

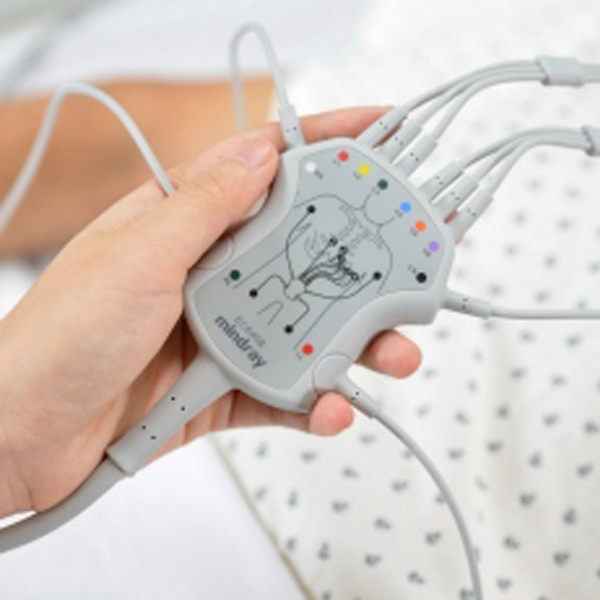

- Anatomically designed cable to minimise tangling and lead reversal
- Optional barcode scanner for rapid input of accurate patient demographics
Measurement and Diagnosis
Globally recognized Glasgow 12-lead analysis supports diagnostic confidence:
- Accurate diagnosis in adults and children from birth upwards; Age, gender and ethnicity specific criteria to improve accuracy for individual patients; Six Critical Value highlighted warnings aid rapid response for potentially urgent issues; Automated diagnosis using the V4R (C4R) electrode placement is ideal for paediatric patients;
- Automated re-analysis after modification of patient demographics aids rapid ECG capture with the option to add patient information later.Digital pacemaker detection provides reliable report of atrial, ventricular and A-V sequential pacing mode without selecting pacemaker detection sensitivity.
Product details for the Mindray BeneHeart R12

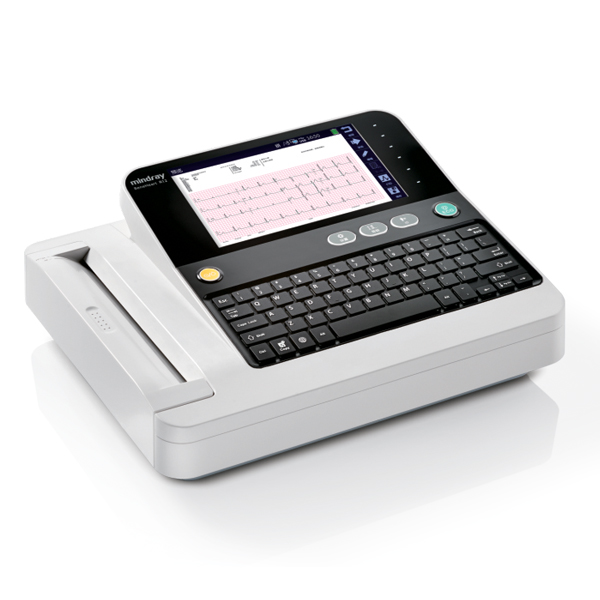

- 12-lead resting ECG machine
- 8″ Colour TFT backlit LCD display (touch screen option available)
- With integrated thermal printer (prints in A4 format)
- PDF export via USB as 12-lead printout
- Internal memory for approx. 800 ECGs
- ECGs can be saved on a USB stick and transferred to a PC
- With lithium-ion battery (3.5 hours battery life or approx. 400 ECG printouts on one battery charge)
- Includes measurement and interpretation function
- User-friendly operator interface
- Modern soft-touch hotkeys
- Standard keyboard for entering patient data
- Patient data can be called up from the working list
- Special cable design prevents the cable from wrapping and twisting
- Full print preview directly on the display
- With ECG analysis (world-renowned, Glasgow 12-lead analysis system)
- Automatic diagnosis with V4R electrode placing (ideal for paediatrics)
- Automated new analysis after changing patient demographics, enables quick production of ECG printouts (patient information can also be entered later)
- Digital pacemaker recognition
- Very quick prep time (7 second start up time)
- Paperless workflow possible
- Very light (4.9kg)
- Dimensions: 12.8 x 36.5 x 30.5 cm (H x W x D)
Delivery Contents with the Mindray BeneHeart R12:
- Mindray BeneHeart R12 ECG machine
- Patient leads, 10-pole
- 6 Chest, suction electrodes
- 6 Button adapters
- 4 Extremity, clamp electrodes
- 2×50 adhesive electrodes
- 100 sheets of thermal paper
- Power cable
- Operating instructions
For detailed specifications refer to the Product Brochure.
Mindray
BeneHeart R12
The Mindray BeneHeart R12 is a 12-lead, resting ECG with an 8 inch colour TFT display, characterised by its user-friendly operator interface. The ECG print-out can be printed using the integrated thermal printer, but it is also possible to export the data to a PC or directly to an external printer. For this reason, the BeneHeart R12 is delivered with various USB connections. The Mindray BeneHeart R12 is equipped with the world-renowned Glasgow, 12-lead analysis system that evaluates the ECG data according to age, gender and ethnic background. In the case of critical values, one of the six warning signals enables treatment to be quickly implemented.
