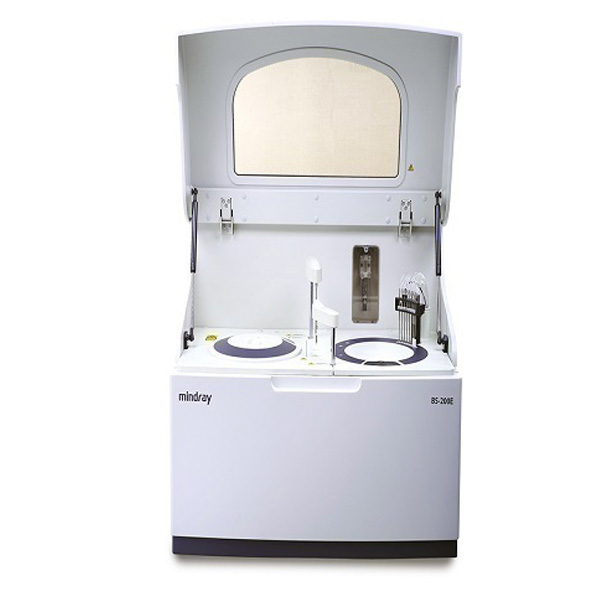

BS-200E ,Chemistry Analyzer
Our Price
- Constant 200 tests per hour for chemistries
- Grating optical system
- 8-step auto washing system
- Vertical and horizontal collision protection for probe
- 12 wavelengths from 340nm to 800nm
- 80 reusable and durable cuvettes
Ready to Ship
Description
- Discrete, random access, fully automated, bench-top
- Constant 200 tests per hour, up to 330 tests per hour with ISE
- Auto washing system with pre-warmed detergent and water
- Grating optical system
- 150μl minimum reaction volume
- Independent mixing bar
- Reusable reaction cuvettes
- Bi-directional connection to LIS host
Physical & Performance
| System Functions | Automatic, Discrete, Random Access.
STAT sample priority. |
| Throughput | Constant 200 tests/hour (without ISE), up to 330 tests/hour with ISE |
| Principles | Absorbance photometry, Turbidimetry, Ion Selective Electrode technology |
| Methodology | End-point, Fixed-time, Kinetic, optional ISE Single/Dual reagent chemistries, monochromatic/bichromatic Linear/non-linear multi-point calibration |
| Programming | Open system with user defined profiles and chemistry calculation System pack reagents ready to use. |
| Reagent/Sample Handling
Reagent/Sample Tray |
40 reagent positions, 40 sample positions in cooling compartment (2~12°C). |
|
Reagent Volume |
R1: 10~350ul, step by 1 ul
R2: 10~200ul, step by 1 ul Sample volume: 2~45ul, step by 0.1 ul |
|
Working Conditions |
Power Supply: AC 200~240V, 50/60Hz, <=1500VA or AC 100~130V, 50/60Hz, <=1500VA.
Temperature: 15-30°C for operation. Humidity: 35-85% RH |
| Dimension | 860mm (W) x700mm (D) x625mm (H) |
| Weight | 130 Kg |
For detailed specifications refer to the Product Brochure.
Mindray
BS-200E
After more than 10 years of research and development on reagents, Mindray can now provide 48parameters of dedicated reagents(more than 17 others are coming), covering hepatic, renal, cardiac, lipids, diabetes, pancreatitis, inorganic ions and immunalassays, etc.,together with original calibrators with metrological traceability as well as controls for BS-200E chemistry analyzer.
