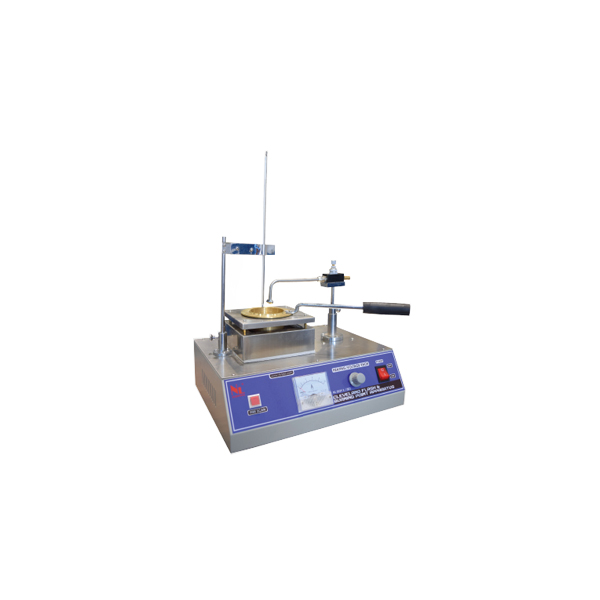

Cleveland Flash & Burning Point Apparatus
Our Price
The apparatus is applicable for determining measurement of flash points and burning points of petroleum products (the Cleveland open cup method) except petroleum products with flash points and burning points lower than 79°C.
Code : NL 2039 X / 002
Ready to Ship
Description
Technical Specifications
| Standard | EN 22592, ASTM D92, AASHTO T48, IP 36/67, UNE 7075, NFT60-118, ISO 2592 |
| Ignition | Automatic |
| Heating Power of Furnace | 400 W |
| Temperature Adjustment | Controlled Silicon (Continuous) |
| Dimension | 500 (L) x 400 (W) x 300 (H) mm |
| Approx. Weight | 6 kg |
| Power | 220 V, 1 ph, 50 / 60 Hz |
Unit Consists Of
| Model Number | Parts Description | Qty |
| NL 2039 X / 002 – P 001 | Thermometer IP 28C (ASTM 11C), Range -6 +400°C | 1no. |
| NL 2039 X / 002 – P 002 | Brass Cup With Handle | 1no. |
| NL 2039 X / 002 – P 003 | Flame Gas Device Unit c/w Gas Hose | 1no. |
Optional Accessories
| Model Number | Accessories Description |
| NL 2039 X / 002 – A 001 | Flame Gas Regulator |
For detailed specifications refer to the Product Brochure.
