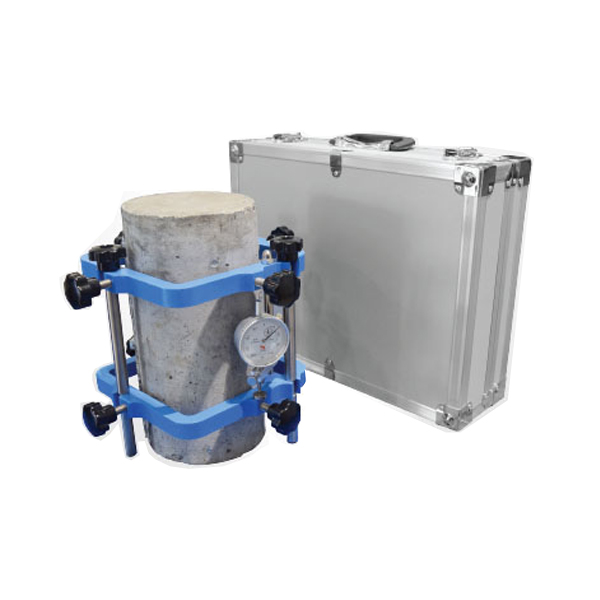

Compressometer Apparatus
Our Price
- It is used to determine the strain and deformation characteristics of concrete and cylindrical specimens.
- It is comprises two lightweight metal castings for clamping to the specimens, two length gauge bars, a dial gauge 5 mm travel x 0.001 mm divisions.
- Compressometer for cylinder dia. 150 x 300, 160 x 320 mm. and 6” x 12”.
Ready to Ship
Description
Technical Specifications:
| Model Number | NL 4002 X / 003 |
| Standard | ASTM C469, UNI 6556 |
| Dimension (mm) | 330 (L) x 330 (W) x 260 (H) mm |
| Packing Weight | 5.5 kg |
| Approx. Weight | 2.8 kg |
Unit Consists Of:
| Model Number | Parts Description | Qty |
| NL 4002 X / 002 – P 001 | Clamping Ring Set | 1set |
| NL 7020 X / 003 | Dial Gauge 5 x 0.001 mm | 2nos. |
| NL 4002 X / 002 – P 002 | Carry Case | 1no. |
For detailed specifications refer to the Product Brochure.
NL Scientific
Compressometer Apparatus
It is used to determine the strain and deformation characteristics of concrete and cylindrical specimens. It is comprises two lightweight metal castings for clamping to the specimens, two length gauge bars, a dial gauge 5 mm travel x 0.001 mm divisions. Compressometer for cylinder dia. 150 x 300, 160 x 320 mm. and 6” x 12”.
