Digimatic Load Cell
Our Price
- The load cell is suitable for the calibration of compression testing machine.
- It consists of high quality steel block, named sensitive element, where strains have been fitted: the whole is housed in sheathing.
- While the load is applied, strains are transmitted to an amplifier which gives a load digital reading.
- Code : NL 4031 X / 005
Ready to Ship
Description
Technical Specifications
| Model Number | NL 4031 X / 005 |
| Capacity | 100 x 0.01 kN |
| Load Cell Dimension (mm) | Ø130 x 170 (H) |
| Working Temp. | 0 – 45°C, Moisture ≤ 80% RH |
| Accuracy | Class ±1 % |
| Approx. Weight | 9.5 kg |
| Power | Nicd AC Adaptor as charging source |

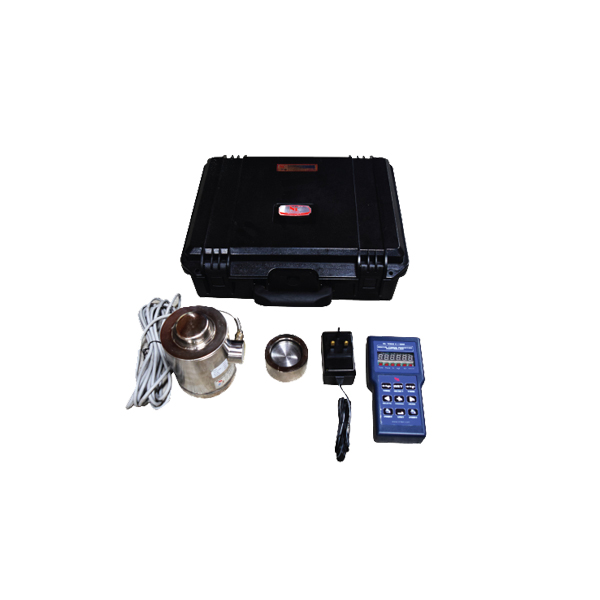

Set Consists Of
| Model Number | Accessories Description | Qty |
| NL 4031 x / 004 – P001 | Cell c/w Top Cap | 1set. |
| NL 4031 x / 004 – P002 | Handheld Digital Readabout | 1unit |
| NL 4031 x / 004 – P003 | Power Charger Adapter | 1no. |
| NL 4031 x / 004 – P004 | Heavy Duty Carry Case | 1no. |
For detailed specifications refer to the Product Brochure.
NL Scientific
Digimatic Load Cell
The load cell is suitable for the calibration of compression testing machine. It consists of high quality steel block, named sensitive element, where strains have been fitted: the whole is housed in sheathing. While the load is applied, strains are transmitted to an amplifier which gives a load digital reading.
