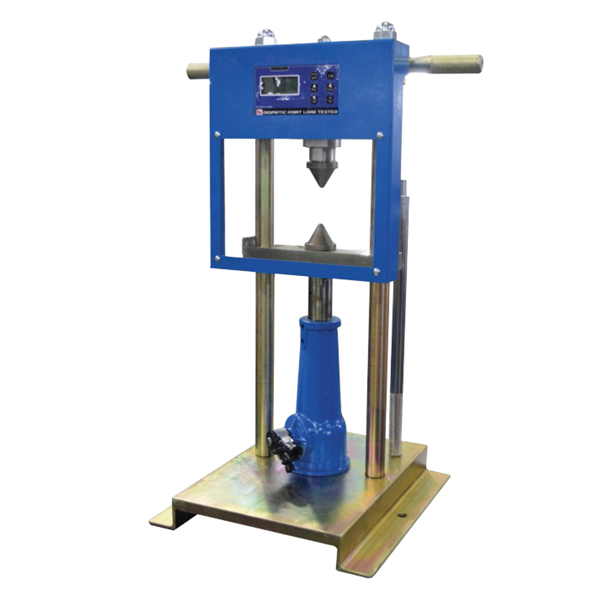

Digimatic Point Load Tester Apparatus
Our Price
- Used to determine the strength values of a rock specimen both in the field and in the laboratory. New rigid design load frame with hydraulic loading ram actuated by hand pump.
- A ruler attach on the frame allow for direct measuring specimen diameter. The apparatus applied high accuracy load cell & fine resolution reading control unit.
Ready to Ship
Description
Technical Specifications:
| Model Number | NL 1012 X / 006N |
| Max. Capacity | 50 kN x 0.01 kN Sensitivity |
| Max. Specimen Test | 90 mm Dia. |
| Power | 1.8 Ah Rechargeable with AC 220 V |
| Result Storage | 50 Test Results |
| Accuracy & Repeatability | ≤1.0 % F.S |
| Case Dimension (mm) | 280(L) x 220(W) x 680(H) mm |
| Approx. Weight | 32kg |
For detailed specifications refer to the Product Brochure.
NL Scientific
Digimatic Point Load Tester Apparatus
New rigid design load frame with hydraulic loading ram actuated by hand pump. A ruler attach on the frame allow for direct measuring specimen diameter. The apparatus applied high accuracy load cell & fine resolution reading control unit.
Out Stock
