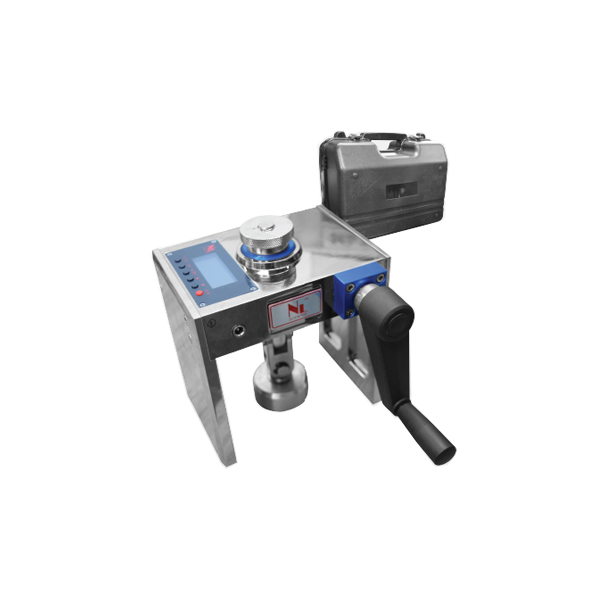

Digital Pull Off Tester 6 kN (Bond Strength)
Our Price
- Used to determine the bonding strength of concrete overlay adhesion.
- Also suitable for measuring the strength of applied coatings such as plastic, mortars, plasters, tiles, bituminous coats as well as paint & other coatings on metal.
- It tests at any measuring point on the component, without requiring specimen preparation.
- However, a suitable depth of coring diameter same as the test disc is prepared prior to pulling off the surface bonding.
- Supplied complete with carry case.
- Accessories to be ORDER SEPARATELY.
Ready to Ship
Description
Technical Specifications
| Standard | EN 1542, EN 1348, EN 1015-12 |
| Model Number | NL 3020 X / 001 |
| Max. Load Capacity | 6 X 0.001 kN sensitivity |
| Accuracy & Repeatibility | ≤1.0% F.S |
| Piston Travel | 10 mm |
| LED Display | 55 mm LED Screen |
| Bracket Span Distance | 120 mm |
| Data Memory | 500 Test Result |
| Power Source | 200 V,1pH (Rechargeable) |
| Tester Weight (LxWxH) |
2 kg |
| Tester Dimension (LxWxH) | 150 X 150 X 150 mm |
| Carry Case Dimension | 400 X 330 X 220 mm |
Unit Consists Of
| Model Number | Parts Description | Qty |
| NL 3020 X / 001 – P 001 | Puller Rod c/w Knob | 1no. |
| NL 3020 X / 001 – P 002 | Cranked Handle | 1no. |
| NL 3020 X / 001 – P 003 | Power Charger | 1no. |
Optional Accessories
| Model Number | Accessories Description |
| NL 4016 X / 003 – A 001 | Adhesion Test Aluminium Disc 20 mm dia. by 20 mm thick (n。 10 pieces) |
| NL 4016 X / 003 – A 002 | Adhesion Test Aluminium Disc 50 mm dia. by 20 mm thick (n。 10 pieces) |
| NL 4016 X / 003 – A 003 | Adhesion Test Stainless Steel Disc 50 mm dia. by 20 mm thick (n。 10 pieces)
It confirms to EN 1015-12 Specification. |
| NL 4016 X / 003 – A 004 | Adhesion Test Aluminium Disc, square, 50 x 50 mm, 20 mm thick (n。 10 pieces) Standard: EN 1348 |
| NL 4016 X / 003 – A 005 | Cylindrical ring, having truncated cone shape, inside dia. 50 mm Standard: EN 1015-12 |
| NL 4016 X / 003 – A 006 | High Performance Epoxy Adhesive 30 ml |
| NL 7018 X / 002 | Core Bit Set 50 mm I.D |
| NL 7018 X / 007 | Core Bit Set 20 mm I.D (With Adaptor) |
| NL 4006 X / 001 | Hand Held Coring Machine with Portable Base. 220 V, 50 / 60 Hz, 1900 W (Max: Ø100 mm) |
For detailed specifications refer to the Product Brochure.
