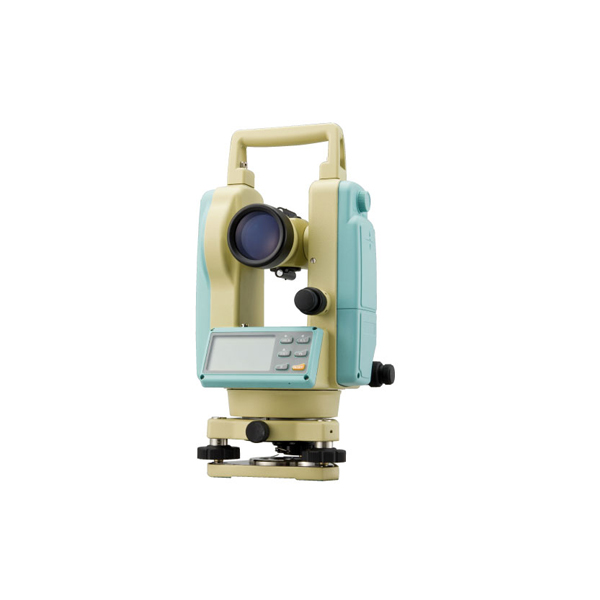

DTC-110 ,Digital Theodolite
Our Price
- Shifting tribrach
- Switchable reading 5″ or 10″
- Rechargable battery and charger are standard accessories
Ready to Ship
Description
- Shifting tribrach
- Switchable reading 5″ or 10″
- Rechargable battery and charger are standard accessories
Technical Specifications:
Telescope
| Image | Erect |
| Magnification Ratio | 30X |
| Effective Aperlure of Object Lends | 45mm |
| Resolution | 3″ |
| Angle of View | 1°30′ |
| Shortest Visibility Distance | 1.35m |
| Stadia Multipication Constant | 100 |
| Stadia Addition Constant | 0 |
Optical Plummet
| Magnification Ratio | 3X |
| Angle of View | 5° |
| Focusing Range | 0.5m to ∞ |
Ambient Temperature
| -20°C to 50°C |
Power Supply
| Alkaline batteries/ rechargeable Ni-H battery Duration of Operation: 36h (Alkaline) |
| Ni-H Battery Source Voltage: 4.8V 1,500mAh |
Angle Measuring System
| Made of Angle Measurement | Photoelectric Incremental Reading |
| Detection Method | V: Single side H: Both side |
| Min. Reading | 5″/ 10″ |
| Precision of Angle Measurement | 10″ |
| Unit of Angle | DEG MIL GON |
| Display | LCD Double side |
Sensitivity of Vial
| Tubular Vial | 30″/ 2mm |
| Circular Vial | 8’/2mm |
Tribrach
| Shifting |
Dimensions
| Body | W164xL154xH340mm |
| Weight | 4.6kg |
| Case | W440xH245xL280mm |
| Weight | 3.05kg (Incl. Accessories) |
For detailed specifications refer to the Product Brochure.
Myzox
DIGITAL THEODOLITE DTC-110
Shifting tribrach
Switchable reading 5″ or 10″
Rechargable battery and charger are standard accessories
