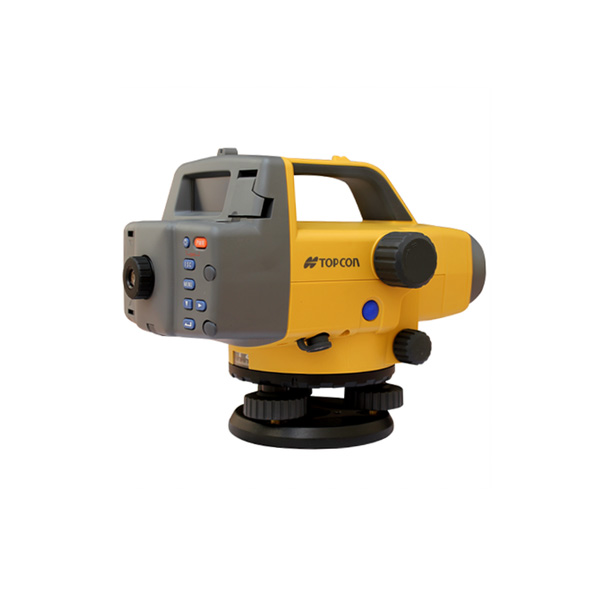

DL 500 Series, Digital Level
Our Price
- Internal Memory 2000 Points
- High Accuracy 0.6 mm
- High Different Measurement
- Reading-Digital
- Measuring Time – 1 sec
Ready to Ship
Description
Features & Benefits
- One Button Triggers Measurement and Data Storage
- 0.6mm/0.8mm Height Accuracy
- “Wave-and-Read” Technology Guarantees Easy and Accurate Measurement
- Pre-installed Measurement Programs, Height Difference Measurement
- Inverse Staff Reading for Ceiling Height
- Internal Memory
Physical & Performance
| Telescope | DL-502 | DL-503 |
| Magnification | 32X | 28X |
| Objective aperature | 45mm | 36mm |
| Resolving Power | 3″ | 3.5″ |
| Minimum Focus | 1.5m | 1.5m |
| Image | Erect | Erect |
| Stadia ratio | 100 | 100 |
| Compensator | Type : Pendulum compensator with magnetic damping system | Type : Pendulum compensator with magnetic damping system |
| Height measurement | Accuracy (standard deviation for 1km double run leveling) | Accuracy (standard deviation for 1km double run leveling) |
| Measuring range | 1.6 to 100m | 1.6 to 100m |
| Measurng time | Fine : 3 sec. (single/continuous/average)
Tracking : 1 sec. |
Fine : 3 sec. (single/continuous/average)
Tracking : 1 sec. |
| Power Supply | BDC46B (Li-ion battery, 7.2V) | BDC46B (Li-ion battery, 7.2V) |
For detailed specifications refer to the Product Brochure.
Leica
DL 500 Series (Digital Level)
DL-500 tracks the RAB Code staff waved back and forth, and automatically reads the correct height. The staff reading becomes the minimum when it stands vertically. The DL-500 automatically finds the least value of staff readings. This world’s first technology allows for error-free readings of waved staffs, while dramatically reducing operator’s eyestrain
