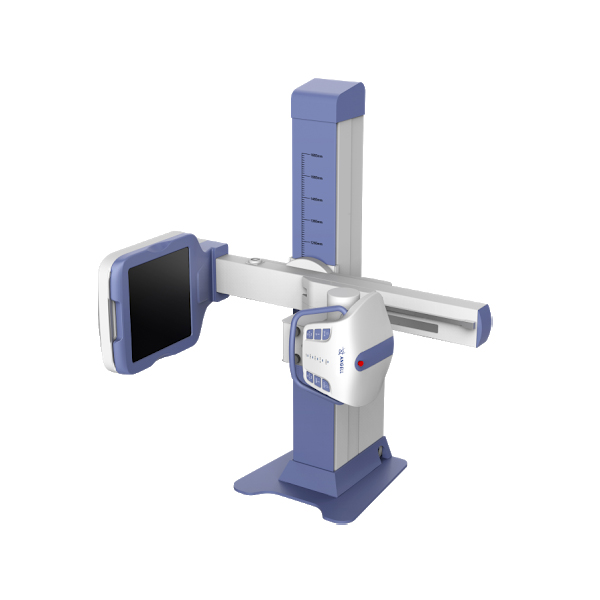

DP-520 Digital X-Ray Machine
Our Price
- Flat Panel Detector
- High Frequency Generator
- High Voltage Cables
- U-Arm Stand
- Mobile Photography Table
Ready to Ship
Description
DP520-B Packing List
| Systems | Parts |
| Detector | Flat Panel Detector
DXRay Diagnostic Workstation |
| X-Ray System | High Frequency Generator
Console X-Ray Tube High Voltage Cables Collimator |
| Motion Control System | U-Arm Stand
Mobile Photography Table |
| Accessories | Grid
Report Laser Printer Microphone/Speaker |
DP520-B Specification (Flat Panel Detector – Angell DR-F1)
| Detector Technology | Flat Panel Detector : a-Si TFT with PIN diode |
| Purpose | General Radiography |
| Image Size | 17 × 17 inch ( 430mm × 430 mm ) |
| Pixel Matrix | 3072 x 3072 ( 9M Pixels ) |
| Output Grayscale | 16 bit |
| Acquisition Time | < 3s |
| Spatial Resolution | 3.5lp/mm |
| Pixel Pitch | 140 x 140 microns |
For detailed specifications refer to the Product Brochure.
