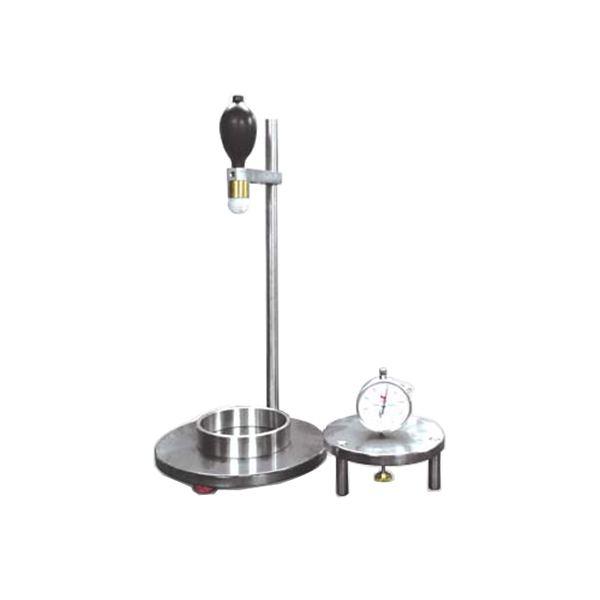

Dropping Ball Apparatus
Our Price
Use to measure the consistency of cement mortars, this instrument allows a 25 mm diameter acrylic ball fall freely from a standard height.
Ready to Ship
Description
Technical Specifications:
| Standard | BS 4551-1, 6463-4 |
| Height of Drop | 250 mm |
| Approx. Weight | 8 kg |
Set Consists Of:
| Model Number | Parts Description | Qty |
| NL 3002 X / 001 – P 001 | Dropping Ball Device Stand | 1set |
| NL 3002 X / 001 – P 002 | Acrylic Ball | 1no. |
| NL 3002 X / 001 – P 003 | Mortar Ring Mould Ø 100 x 25 mm | 1no. |
| NL 3002 X / 001 – P 004 | Penetration Measuring Device | 1no. |
| NL 3002 X / 001 – P 005 | Rubber Suction Hand Pump | 1no. |
| NL 7020 X / 001 | Dial Indicator 25 x 0.01 mm | 1no. |
For detailed specifications refer to the Product Brochure.
