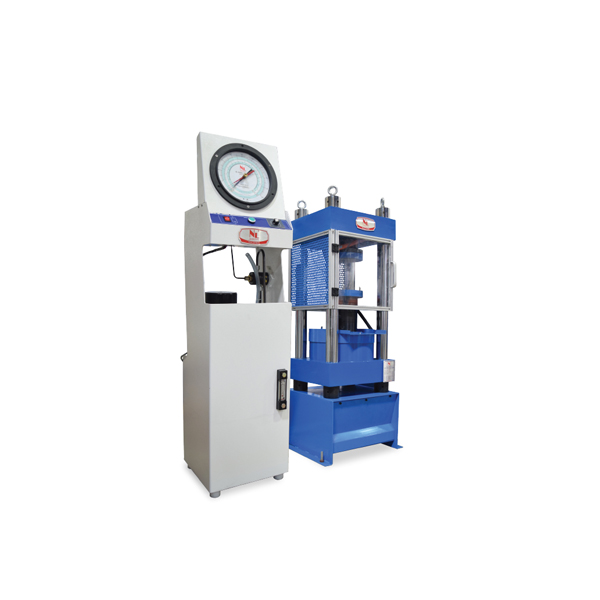

ECO-SMARTZ ANALOGUE COMPRESSION MACHINE LIGHT DUTY
Our Price
- Special design for brand new outlook.
- Replaced by new imported DC motor for more durability,low noise pollution, low oil temperature and lower power consumption. Extra improvement on safety featured.
Code : NL 4000 X / 028
Ready to Ship
Description
Energy Saving
Less Vibration and noise
Simple operation system (user friendly)
Fully covered safety enclosed
Technical Specifications
| Model Number | NL 4000 X / 028 |
| Max.Vertical Clearance | 415 mm |
| Max.Horizontal Clearance | 270 mm |
| Capacity | 2000 kN x 5 kN/Div |
| Compression Platen Diameter | 295 mm |
| Piston Ram Diameter | 250 mm |
| Piston Ram Travel | 50 mm |
| Main Frame Dimension | 630 (L) x 660 (W) x 1280 (H) mm |
| Smartz Console Dimension | 350 (L) x 400 (W) x 1158 (H) mm |
| Approx.Weight | 600 kg |
| Power | 220 V,2.5 Amp, 50/60 Hz, 750W,1 ph |
For detailed specifications refer to the Product Brochure.
NL Scientific
ECO-SMARTZ ANALOGUE COMPRESSION MACHINE LIGHT DUTY
Special design for brand new outlook. Replaced by new imported DC motor for more durability,low noise pollution, low oil temperature and lower power consumption. Extra improvement on safety featured.
Out Stock
