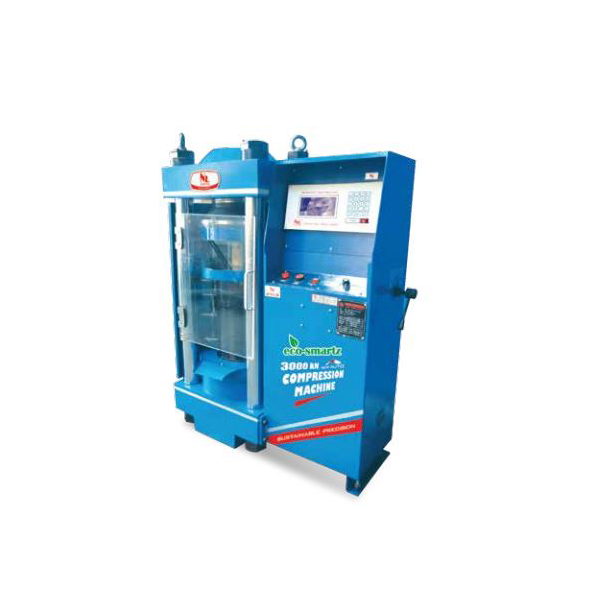

ECO-SMARTZ AUTOMATIC COMPRESSION MACHINE 3000kN
Our Price
- Newly upgraded model with brand new outlook.
- Old AC motor replaced by new imported DC motor for more durability, low noise pollution, low oil temperature & low power consumption.
- Extra improvement on safety featured with fully protection cover & piston travel protection switch cover.
code : NL 4000 X / 014
Ready to Ship
Description
Energy saving up to 70% compared with old version
Less vibration & noise
Auto result saving up to 450 specimen
Simple operation system
Fully covered safety enclosed
Technical Specifications
| Model Number | NL 4000 X / 014 |
| Max. Vertical Clearance | 415 mm |
| Max. Horizontal Clearance | 360 mm |
| Capacity | 3000 kN x 1.0 kN Sensitivity |
| Compression Platen Diameter | 295 mm |
| Piston Ram Diameter | 310 mm |
| Piston Ram Travel | 80 mm |
| Column Diameter | 80 mm |
| Product Dimension (mm) | 630 (L) x 990 (W) x 1280 (H) |
| Packing Dimension (mm) | 730 (L) x 1090 (W) x 1500 (H) |
| Approx. Product Weight | 1100 kg |
| Approx. Packing Weight | 1200 kg |
| Power | 220 V, 2.5 Amp, 50 / 60 Hz, ½ ph |
For detailed specifications refer to the Product Brochure.
NL Scientific
ECO-SMARTZ AUTOMATIC COMPRESSION MACHINE 3000kN
Newly upgraded model with brand new outlook. Old AC motor replaced by new imported DC motor for more durability, low noise pollution, low oil temperature & low power consumption. Extra improvement on safety featured with fully protection cover & piston travel protection switch cover.
