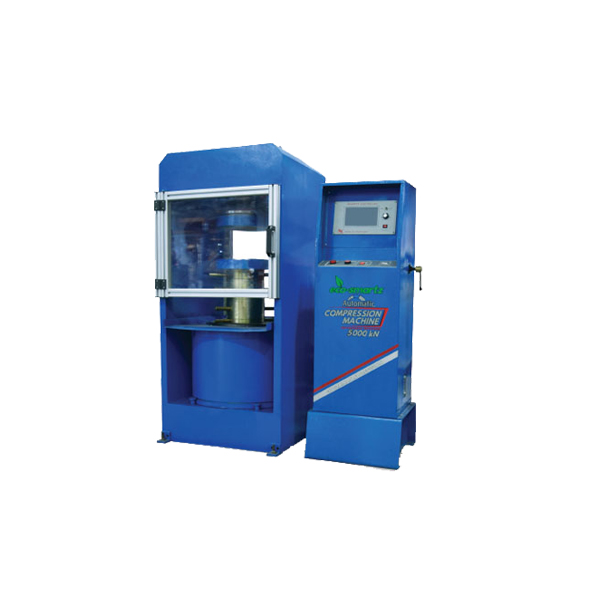

ECO-SMARTZ Automatic Compression Machine (Welded Frame) 5000 kN
- Multi-purpose compression test machine with two compression frames using a single control unit.
- This machine provides an economic solution to test both concrete & mortar samples without having to purchase two separate machines.
- Dual channel system enables the calibration to be done independently for each frame.
- The 500kN frame may also be used as a flexural frame for testing of concrete beams by using the optional flexural attachment.
Code : NL 4000 X / 025
Description
Touch Screen Smartz Controller V 1.1
Clear, easy to read, sensitive & large LCD touch screen display of 155mm(W) x 85 mm(H)
Maximum force hold facility with real time Force vs Time graph display.
User input test number, age, weight & density for complete sample information.
Real time speed indicator bar for better current speed reference for better control
Manual loading & conditional automatic loading for compression machines with suitable DC motor control system.
Automatic conversion from kN to Mpa according to the chosen sample types.
5000 kN Technical Specifications
| Max. Vertical Clearance | 435 mm |
| Max. Horizontal Clearance | 580 mm |
| Capacity | 5000 kN x 1.0 & 999kN x 0.1kg Sensitivity |
| Compression Platen Diameter | 300 mm |
| Piston Ram. Diameter | 440 mm |
| Piston Ram Travel | 50 mm |
| Accuracy | Class 1 |
| Frame Dimension (mm) | 750 (L) x 660 (W) x 1500 (H) |
| Console Dimension (mm) | 620 (L) x 500 (W) x 1300 (H) |
| Approx. Product Weight | 2800 kg |
| Approx. Packing Weight | 2950 kg |
| Power | 220 V, 2.5 Amp, 50 / 60 Hz, 1 ph |
For detailed specifications refer to the Product Brochure.
