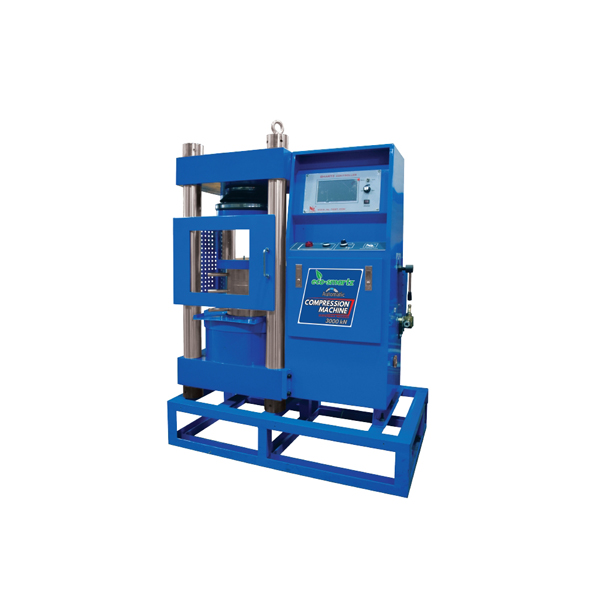

ECO-SMARTZ AUTOMATIC TOUCH SCREEN COMPRESSION MACHINE 3000 kN
Our Price
- Newly upgraded model with brand new outlook.
- Old AC motor replaced by new imported DC motor for more durability, low noise pollution, low oil temperature & low power consumption.
Code : NL 4000 X / 018U
Ready to Ship
Description
Energy saving
Less vibration & noise
Auto result saving up to 450 specimen
Simple operation system
Dual channels ready for compression & flexural
Piston travel switch
ADDITIONAL FEATURE
Upgraded fully covered safety enclosed
Extended base frame for comfortable operation level
USB port to export test result
Technical Specifications
| Model Number | NL 4000 X / 018U |
| Max. Vertical Clearance | 370 mm |
| Max. Horizontal Clearance | 320 mm |
| Capacity | 3000 kN |
| Low Range Sensitivity | 0 – 999 x 0.1 kN |
| High Range Sensitivity | 1000 – 3000 x 1 kN |
| Compression Platen Diameter | 295 mm |
| Piston Ram Diameter | 290 mm |
| Piston Ram Travel | 50 mm |
| Column Diameter | 73 mm |
| Accuracy | Class 1 |
| Product Dimension (mm) | 1020 (L) x 650 (W) x 1300 (H) |
| Packing Dimension (mm) | 1065 (L) x 700 (W) x 1450 (H) |
| Approx. Product Weight | 905 kg |
| Approx. Packing Weight | 972 kg |
| Power | 220 V, 2.5 Amp, 50 / 60 Hz, 1 ph |
For detailed specifications refer to the Product Brochure.
NL Scientific
ECO-SMARTZ AUTOMATIC TOUCH SCREEN COMPRESSION MACHINE 3000 kN
Newly upgraded model with brand new outlook. Old AC motor replaced by new imported DC motor for more durability, low noise pollution, low oil temperature & low power consumption.
