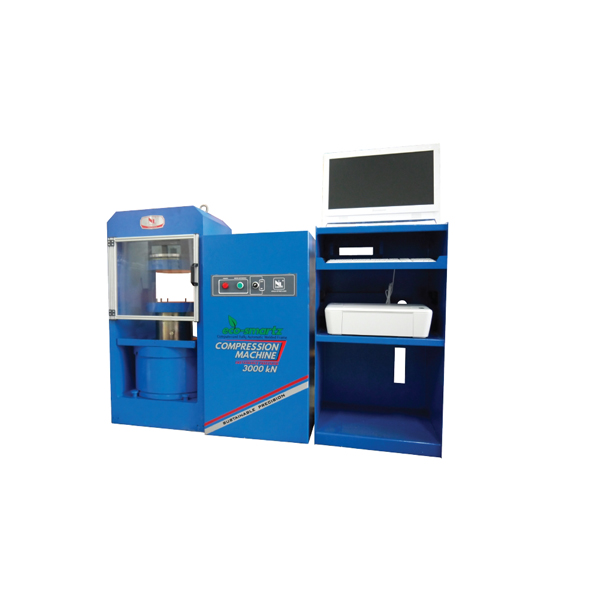

ECO-SMARTZ COMPUTRIZED FULLY AUTOMATIC WELDED FRAME COMPRESSION MACHINE 3000 kN
- Newly upgraded model, rigid, compact & with brand new outlook.
- Old AC motor had replaced by new imported DC motor for more durability, low noise pollution, low oil temperature & low power consumption.
- Extra improvement on safety feature with fully protection cover & piston travel protection switch cover.
Code : NL 4000 X / 020
Description
High energy saving up to 70% compare with conventional type
Extremely low sound & vibration during operation
User friendly computerised system
Original genius parts cost low maintenance
Free from foundation mounting
Fully covered safety enclosed
SOFTWARE SUPER TEST 9.1
*User friendly one click RUN to operate & clear menu display indication
*Options to select number of decimal points to display for Load, Strength & Speed.
*Real time display of Load against Time curve & options to display curve in test report.
*Number of samples per report can be added up to 10 samples.
*Unlimited savings of test result in huge computer storage memory.
*User input of Test Number, Strength, Age, Sample Size (cube, block & cylinder) & Loading Speed
*Test report can be printed immediately after test with a printer connected.
*Test report header can be input manually for various information such as customer information, weight, mixing ratio, project, etc.
*Simple automatic or manual loading for calibration with auto correction function for load error.
*Software consists of dual programes for compression & flexural tests.
Technical Specifications
| Model Number | NL 4000 X / 020 |
| Max. Vertical Clearance | 350 mm |
| Max. Horizontal Clearance | 290 mm |
| Capacity | 3000 kN x 1.0 kN Sensitivity |
| Compression Platen Diameter | 300 mm |
| Piston Ram Diameter | 300 mm |
| Piston Ram Travel Column Diameter | 80 mm |
| Accuracy | Class 1 |
| Loading Rate Range | 1 kN / s |
| Relative Error | ±1% |
| Repeatability Relative Error | 1% |
| Zero Drift | ±0.1% |
| Resolution | 0.5% |
| Sensor Accuracy | 0.1% |
| Max. Hydraulic Working Pressure | 25 Mpa |
| Product Dimension (mm) | 960 (L) x 500 (W) x 1200 (H) |
| Packing Dimension (mm) | 1060 (L) x 600 (W) x 1450 (H) |
| Approx. Product Weight | 900 kg |
| Approx. Packing Weight | 1000 kg |
| Power | 0.75 KW |
For detailed specifications refer to the Product Brochure.
