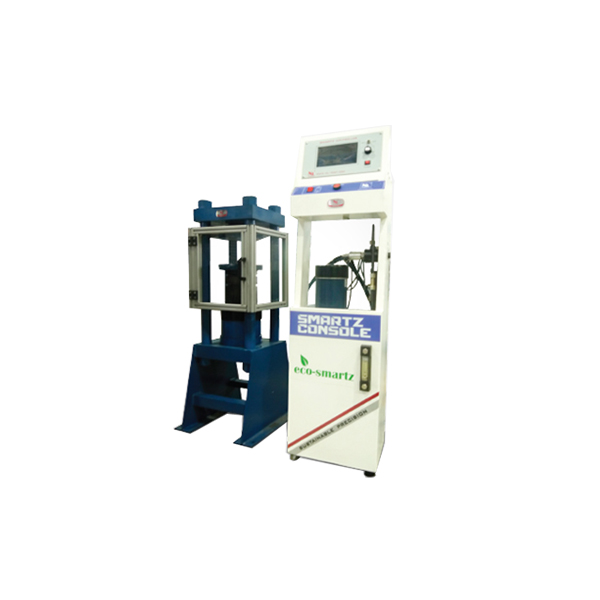

Eco Smartz Low Strength Touch Screen Compression Machine 300kN-1000kN
Our Price
Special design for low strength compression specimen between 300 – 1000 kN such as mortar, light weight concrete, brick & etc with digital interface readout for high accuracy test result.
Ready to Ship
Description
- Advance digital readout with user friendly operation
- Maximum overload & piston travel protection system
- Light duty & rigid with 4 nos. prestressed column frame structure
Technical Specifications
| Standard | ASTM C39, AASHTO T22 |
| Capacity 300 – 1000 | 0.1 kN |
| Dimension Main Frame | 300 (L) x 340 (W) x 1108 (H) mm |
| Dimension Smart Console | 350 (L) x 400 (W) x 1158 (H) mm |
| Piston Ram Diameter | 155 mm |
| Piston Stroke | 50 mm |
| Horizontal Clearance | 210 mm |
| Vertical Clearance | 320 mm |
| Accuracy | ±1.0% |
| Approx. Weight | 420 kg |
| Power | 220 V, 1 ph, 50 / 60 Hz, 750 W |
Unit Consists Of
| Model Number | Parts Description | Qty |
| NL 3029 X / 001 – P 001 | Upper Spherical Compression Platen | 1no. |
| NL 3029 X / 001 – P 002 | Lower Compression Platen | 1no. |
| NL 3029 X / 001 – P 003 | Distance Piece Ø 158 x 100 mm | 1no. |
| NL 3029 X / 001 – P 004 | Distance Piece Ø 158 x 50 mm | 1no. |
Optional Accessories
| Model Number | Accessories Description |
| NL 3027 X / 002 – P001 | Mortar Prism Flexural Device |
| NL 3027 X / 002 – P002 | 50 mm (2”) Mortar Cube Compression Device |
| NL 3029 X / 001 – A 001 | Set of Upper & Lower Block Compression Platen |
| NL 3029 X / 001 – A 002 | Lower Compression Platen for 100 mm Cube |
| NL 4000 X / 002 – A 002 | Mortar Flexural Compression Device |
| NL 4000 X / 002 – A 003 | Mortar Cube Compression Device |
| NL 4000 X / 002 – A 004 | 40.1 x 40 x 160 mm Mortar Prism Device |
| NL MMP – 100 | Mini Micro Printer c/w Cable |
| NL 3029 X / 001 – A 004 | Printer Paper Roller (pack of 3 rolls) |
For detailed specifications refer to the Product Brochure.
