Electro Hydraulic Servo control 300kN universal
- NL Servotec Fully Automatic Universal Tensile Machine out tester adopts DC speed regulating servo motor & reduction gears as the power source.
- It real time displays test data & test status with LCD module.
- Professional designed servo control system realizes the PWM pulse width modulation control mode.
- It really comes up to with test speed closed loop control mode.
- It is controlled by single chip automatically control.
Description

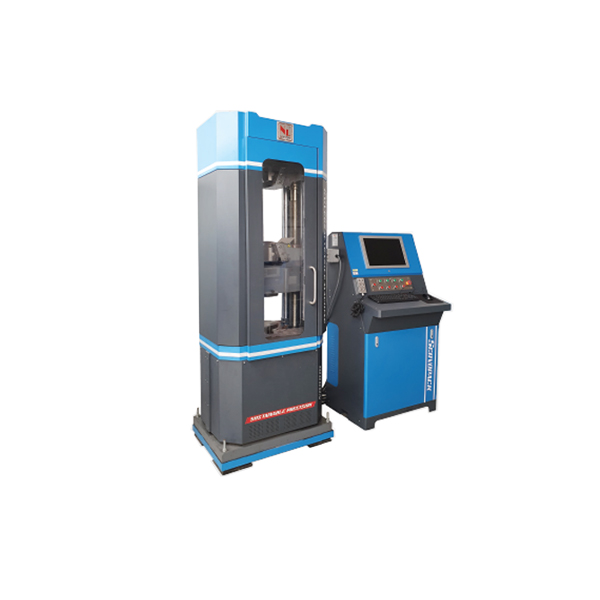

Electro-Hydraulic Servo Control Universal Testing Machine 300kN
NL 6000 Series UTM use the micro-computer automatic data collection and processing, real time display of the test data and curves. It has the functions such as unlimited storage of test result in the computer, printing the test results and curves, processing the batch test result report, managing the database and so on. It also has the network interface. It can automatically seek the multiple technical parameters such as elastic module E upper yield strength ReH, lower yield strength REL, stipulated non-proportional elongation intensity Rr, tensile strength Rm, stipulated total elongation intensity Rt, yield point percentage elongation and etc.
NL 6000 Series UTM have the features such as the high precision, advantage performance, high reliability, convenient operation and etc.
OPERATION DISPLAY
Computer Screen Display unit with the following functions
- Test force display
- Break detection
- Full auto test range switching function
- Auto return function
- Peak / Break value display function
- Test conditions
SAFETY FEATURES
The system include with the followings safety features
- Emergency stop switch
- Overload limiter
- Ram-stroke limiter
- Hydraulic pump motor over-current & over heating protection
- Leak / over current protection
- Automatic stop control
- Safety Guard
CONTROL & DATA PROCESSING SOFTWARE
- User friendly & easily due to clear and brief operation – operation interface
- Automatically save the test conditions & results
- User define test curves including : Stress / Strain, Force / Elongation, Strength / Time to suit various requirement
- Individual or combine display test curves on the same screen to compare with other several data at the same time
- Compatible with Microsoft Excel by import or export function
- Base of testing with digital sample break detection, auto ranging, auto calibration, quick tare & auto return facilities
- Exceeds all International Standards for accuracy, ASTM, DIN, ISO, JIS, EN, GB…etc
- Tension, Compression, Shear, Cycling & Creep Test facilities
- User define Real Time Display Including Load, Stress, Elongation, Strain, Speed or Time
- Advanced protection features with software setting or / & hardware switch upper & lower limit setting
- Operation fully control by computer
- USB communication system & ethernet
- Grips & fixtures for tension, compression, flexural, shear & products testing available
- Fully user define report including Report Sheet, Label, Chart & Bitmap or JPG
- Report sheet consist of Load, Elongation, Yield, Break, Stress Modulus, Strain, Tear Strength, Peel Strength etc
- Test unit including: kgf, Nf, lbf, kgf / cm, kfg / cm, N/mm, Mpa, kpa, kgm, mm, %, min, sec, …etc
- User define Yield Strength, Young Modulus, Offset Setting, Graph Offset, Export & Import test data, …etc
Unique Feature :
- Over size prestressed 4 column with twin screw
- External Auto Hydraulic Cylinder Grip System (Easy Maintenance)
- High toughness fragment safety guard
- High precision load cell ram
- Built-in shock absorbing system on base mounting
- Desktop console unit
Technical Specifications :
| Standard | BS EN 10002-1, ISO 7500-1, ASTM A370 |
| Model Number | NL 6000 X / 015 |
| Capacity | 300 kN |
| Machine Class | Class 1 |
| Accuracy | ±1% |
| Displacement Resolution | 0.001 mm |
| Compression Space | 600 mm |
| Tensile Space | 700 mm |
| Piston Stroke | 200 mm |
| Dia. of Round Specimen | 10 – 32 mm |
| Thickness of Flat Specimen | Up to 20 mm |
| Max. Distance of Bending Test | 300 mm |
| Dia. Size of Compression Plates | 150 mm |
| Dimension (Frame) | 800 x 620 x 1900 mm |
| Dimension ( Control Console) | 760 x 590 x 1600 mm |
| Power | 2.2kW |
| Weight (Control Console) | 300 kg |
| Weight (Frame) | 1600 kg |
Unit Standard Accessories :
| Description | Model Number |
| Main Frame | NL 6000 X / 015 – P001 |
| Electro Hydraulic Servo Power Pack Unit | NL 6000 X / 015 – P002 |
| TEST REPORT Internal Control Unit | NL TSC – 100 |
| Latest Compatible Personel Computer Set with TEST REPORT Software | NL CS – 100 |
| Flat Specimen Jaw Set (4 pcs ) | NL 6000 X / 015 – P003 |
| Round Specimen Jaw Set A (4 pcs) | NL 6000 X / 015 – P004 |
| Round Specimen Jaw Set B (4 pcs) | NL 6000 X / 015 – P005 |
| Compression Platen Set (225 mm Dia.) | NL 6000 X / 015 – P006 |
| Bending Test Device | NL 6000 X / 015 – A001 |
| Console Control Unit with Built-in Industrial Computer and Pre-Installed with TestMaster Software |
NL SAC |
Optional Accessories :
| Electronic Extensometer | NL EST – 100 |
| Computer Printer | NL CP – 200 |
For detailed specifications refer to the Product Brochure.
NL Scientific
Electro-Hydraulic Servo Control Universal Testing Machine 300kN
This NL 6000 Series UTM used for the mechanics property test such as the tensile, bending, compression and etc to various metallic and non-metallic materials. The testers have been developed according to BS EN 10002-1,ISO 7500-1 & ASTM A370 “Metal Tensile Test Method” with the adoption of the electro-hydraulic servo control and elec-tronic measurement. It can automatically process the test result for statistical purpose and print default or user-de-fined test report.
