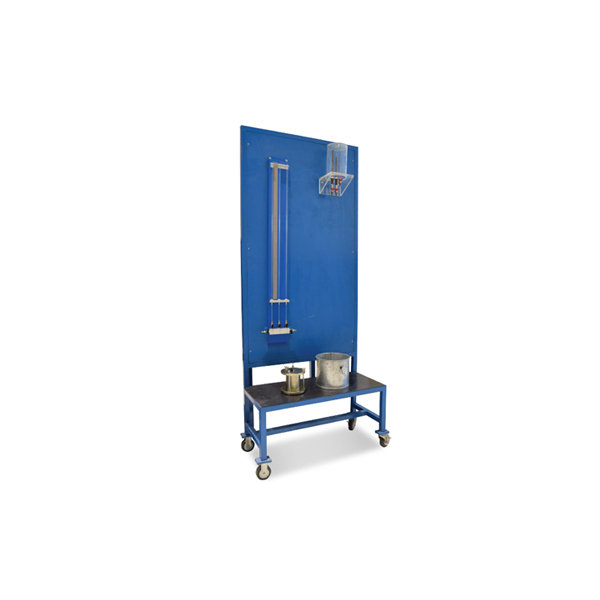

Falling Head Permeameters
Our Price
- Used to determine the permeability of fine-grained soil such as clay-like or slity soil.
- Flow of water through the specimen is observed by monitoring the rate of fall water in tube.
Code : Nl 5035 X/ 001
Email when stock available
Description
Technical Specifications
| Standard | ASTM D2434, AASHTO T215, BS 1377-5 |
Set Consists Of
| Model Number | Parts Description | Dimension |
Approx. Weight |
Qty |
| NL 5035 X / 001 – P 002 | Permeability Cell Ø 4” | Ø 130 x 220 mm | 7.8 kg | 1no. |
| NL 5035 X / 001 – P 001 | Soaking Reservoir with Cock Permeability Cell | Ø 265 x 230 mm | 3.1 kg | 1no. |
| NL 5035 X / 001 – P 003 | Manometer Tubes & Stand | 65 x 190 x 1400 mm | 3.9 kg | 1no. |
| NL 5035 X / 001 – P 004 | De-Airing Tank c/w Bracket | 200 x 200 x 480 mm | 7.0 kg | 1no. |
| NL 5034 X / 005 | Rubber Hose | 4 meters Length | 0.5 kg | 1set |
Optional Accessories
| Model Number | Accessories Description |
| NL 5034 X / 001 – A 001 | Portable Panel Stand c/w Roller Wheel |
For detailed specifications refer to the Product Brochure.
NL Scientific
Falling Head Permeameters
Used to determine the permeability of fine-grained soil such as clay-like or slity soil. Flow of water through the specimen is observed by monitoring the rate of fall water in tube.
