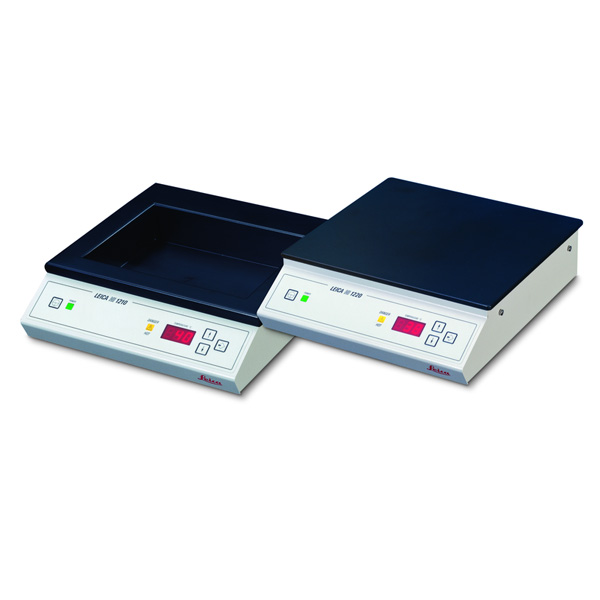

HI1220 ,Flattening Table
- The Leica HI1220 flattening table has a large jet black aluminum work surface to provide high thermal conductivity rates and outstanding resistance to mechanical manipulations.
- Temperatures ranging from ambient to 75°C can be selected, with work surface temperatures above 44°C being indicated by a flashing LED, to guard against overheating of specimens.
- The programmed, as well as the current, temperatures are displayed on the instrument and the set values are memorized via a built-in battery backup system.
Description
LED display
Programmed as well as current temperatures are shown on an LED display while the selected temperature set value is memorized via a built-in battery backup system.
Less sensitive to water
Membrane keyboard is less sensitive to water and paraffin contamination and more easily cleaned.
Better contrast
Jet black surface with scratch-proof plastic coating, provides better contrast to identify sections and an easy to clean surface.
Technical Data
| Nominal supply voltages | Two factory-preset voltages (not user-adjustable): 100-120 VAC + 10 % 230-240 VAC + 10 % |
| Nominal frequency | 50/60 Hz |
| Nominal power | 350 VA |
| Main fuse | 2 melting fuses, 5×20 mm, UL-approved For 100-120 V: 5×20 mm, 2x T 5A L250 VAC For 230-240 V: 5×20 mm, 2x T 2.5A L250 VAC |
| Dimensions | 350x310x100 mm |
| Empty weight | 3.6 kg (w/o packaging) |
| Relative humidity | 20-80 %, non-condensing |
| IEC 1010 classification | Protection class: 1 Pollution degree: 2 Overvoltage category: II |
| Operating temperature range | +15 °C to +40 °C |
| Temperature control range | Room temperature to 75 °C |
| Operating elevation | maximum of 2000 m above sea level |
| IP protection class (IEC 60529) | IP20 |
For detailed specifications refer to the Product Brochure.
Leica
Leica HI1220 Flattening Table for Clinical Histopathology
The Leica HI1220 flattening table for clinical histopathology combines a hotplate with high thermal conductivity rates and precise temperature control. The HI1220 is suitable for stretching and drying paraffin sections for all areas of biomedical research and routine diagnostics. The smooth surfaces of the instrument allow the HI1220 to be cleaned easily and thoroughly. All surface materials are resistant to conventional lab cleaning agents. A flashing signal warns you once a temperature of approx. 44°C has been reached in order to prevent damage to your tissue samples.
