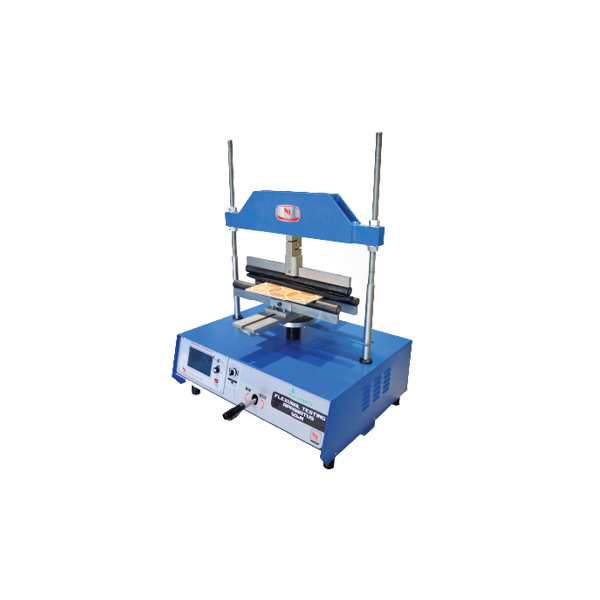

Flexural Testing Machine
- The machine is equipped with a DC motor.
- Flexural, breaking and compression strength. tests can be perform under load or displacement control by using suitable accessories up to the machine capacity.
- Supplied with 50 kN Capacity Load Cell.
- Consist with two layer rounded metal bearers in a horizontal plane whose centers are spaced of the hanging length of the specimen to be tested, and a single rounded metal upper bearer positioned centrally between the two lower bearers.
- The Testing Machine consist of base containing the transmission components and holds two robust columns connected by upper cross head and digital graphics data acquisition and control system.
- The upper cross head can be adjusted to set the vertical test space for different tests.
Code : NL 4043 X / 001
Description
Standard : BS EN 491, EN 538 , BS 6073:1
Category : Concrete Testing Equipments
Code : NL 4043 X / 001
Technical Specifications
| Model Number | NL 4043 X / 001 |
| Max. Capacity | 50 x 0.01 kN sensitivity |
| Display Unit | Eco-Smartz Controller with Touch Screen Display |
| Max, Vertical Test Space | 300 mm (H) x 550 mm (W) |
| Load Rate | 0.02 kN/s – 2 kN/s (Depend on Specimen Stiffness) |
| Memory Storage | 550 Test Result |
| Dimensions Apporx. | 830 (L) x 663 (W) x 1135 (H) |
| Power | 240 V,0.37 kW,3 A, 50/60 Hz,1ph |
| Approx. Weight | 225 kg |
Set Consists Of
| Model Number | Descriptions | Qty |
| NL 4043 X / 001 – P 001 | 50 kN ‘S’ Type Load Cell | 1 pc. |
| NL 4043 X / 001 – P 002 | Single Upper Bearer ( Ø 38 mm ) | 1 pc. |
| NL 4043 X / 001 – P 003 | Double Lower Bearer ( Ø 38 mm ) | 2 pcs. |
| NL 4043 X / 001 – P 004 | Cranked Handle (Calibration Adjustment) | 1 no. |
| NL 4043 X / 001 – P 005 | Hard Rubber Piece | 1 pc. |
For detailed specifications refer to the Product Brochure.
