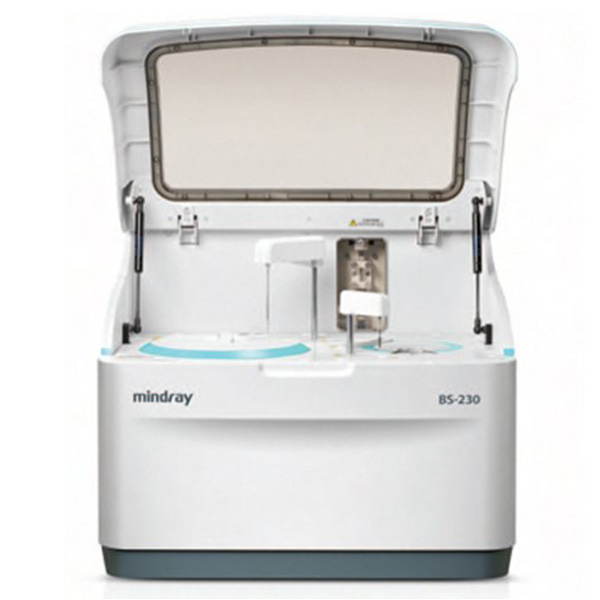

BS-230, Fully-Auto Biochemistry Analyzer
Our Price
- Throughput: Up to 200 tests/hr, up to 400 tests/hr with ISE
- 80 Positions for reagents and 40 Positions for samples in 24-hour refrigerated compartment (2-12.C)
- Reagent/Sample probe: Liquid Level detection, vertical collision protection and invectory checking, reagent prewarming
- Minimal reaction volume: 100 µl
Ready to Ship
Description
- Type: Biochemical Analysis System
- Brand Name: Mindray
- Model Number: BS-230
- Place of Origin: China
- Instrument classification: Class I
- System: fully automatic
- Reagent/Sample tray: 80+ 40
- Sample volume: 2~45ul, step by 0.1ul
- Reagent volume: 10~250ul, step by 0.5uI
- Throughput: Up to 20O tests/hour, up to 400 tests/hour with ISE
- Function: Detecting Body Health
- Application: Human
- Certificate: CE ISO FDA
- Product name: auto biochemistry Analyzer
- Supply Ability: 3000 Set/Sets per Month auto chemistry analyzer
Physical & Performance
| Throughput | Up to 20O tests/hour, up to 400 tests/hour with ISE |
| Measuring principles | Absorbance photometry, Turbidimetry, lon Selective Electrode technology |
|
Methodology |
End-point, Fixed-time, Kinetic, optional ISE
Single/Dual/ reagent chemistries monochromatic / bi-chromatic |
| Reagent volume | 10~250ul, step by 0.5uI |
| Sample volume | 2~45ul, step by 0.1ul |
| Reagent/Sample probe | Liquid level detection, vertical collision protection and inventory checking, reagent pre-warming |
| Probe cleaning | Automatic washing for interior and exterior Carry over < 0.05% |
| Automatic sample dilution | Pre- dilution and post-dilution |
| Light Source | Halogen-tungsten lamp |
| Wavelength | I 8 wavelengths, 340nm, 405nm, 450nm, 510nm, 546nm, 578nm, 630nm,670nm |
| Absorption range | O~4.O Abs (10mm conversion), resolution 0.O001Abs |
| Stray Light | 5.6Abs |
| Calibration modes | Linear (one point, two points and multipoints), Logit-Log 4P, Logit-Log 5P, spline, exponential, polynomial, parabola |
| Control Rules | X-R, L-J, Westgard multi-rule, Cumulative sum check, twin plot |
For detailed specifications refer to the Product Brochure.
Mindray
BS-230
- Complete traceability process
Complete calibration hierarchy and traceability chain are based on ISO standard (EN/ISO17511) from reference system to routine measurement system. - External Quality assurance for reference measurement
Mindray participates in RELA (External quality control for reference laboratory) and CAP (College of American Pathologists external quality control).
