GLS-2000 Series, 3D Laser Scanner
Our Price
- Large Structure များကို Monitoring ပြုလုပ်နိုင်ခြင်း
- Tunnel Profile ဆွဲခြင်း
- Road surface, Slope face profile ဆွဲခြင်း
- BIM/ Building Information Modeling ပြုလုပ်နိုင်ခြင်း
- As-Built Checks များပြုလုပ်နိုင်ခြင်း
- Long Distance Scan (500m, 350m, 130m)
- Easy Setup, High Speed Scan/ Dual Camera
- 360ʹ × 270ʹ Full done Scan
- High Accuracy “Precise Scan Technology II”
Email when stock available
Description
- Speedy, precise scanning with variable range settings
- “Precise Scan Technology II” providing high quality point cloud data with reduced noise
- Full-dome scanning range
- World’s first “Direct Height Measurement”
- Easy and accurate registration methods
- Onboard software with intuitive and easy operation
Physical & Performance
| Type | Pulsed Precise Scan Technology |
| Laser Class | 3R (High Speed / Standard) 1M (Low Power) |
| Field of view (per scan) | Horizontal: 360º Vertical: 270º |
| Color Digital Imaging |
5 MP, Dual (170°/8.9°)
Wide-Angle:
170˚ Diagonal Telephoto:
Horizontal: 11.9˚ Vertical: 8.9˚ |
| Scan Rate | High Speed: Up to 120,000 points/sec |
| Spot Size | 4 mm at 20 m (FWHM) |
| Operating Temperature | -5ºC to 45ºC |
| Storage Temperature | -20ºC to 60ºC |
| Dimensions | W: 293 mm (11.5”) D: 152 mm (6”) H: 412 mm (16.2”) |
| Weight | 11 kg (24 lbs) |
| Keyboard | 21 keys |
| Scanning Control | Control System : On-board
Display : 3.5″ Color Touch Display Keyboard : 3 Key Data Storage : SD Card |
For detailed specifications refer to the Product Brochure.
Topcon

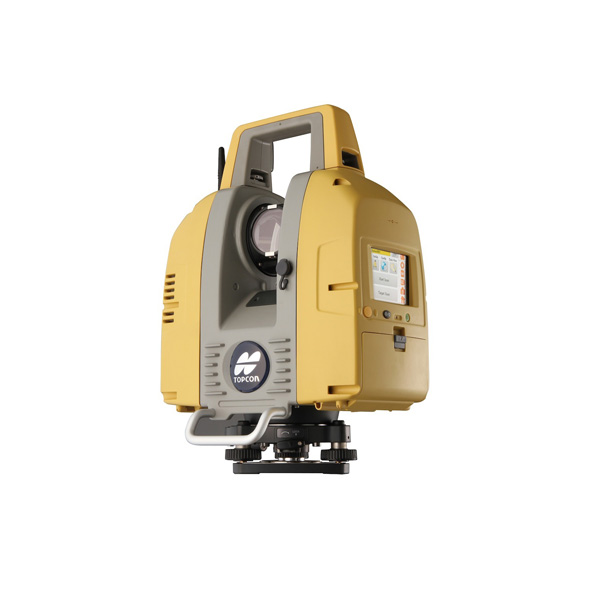

GLS-2000 Series (3D Laser Scanner)
The GLS-2000 series of scanners is composed of three comparable, yet distinct models: The GLS 2000S (short-range), GLS-2000M (middle-range), and the GLS-2000L (long-range). Each model is a full featured scanner that can be effectively deployed to capture existing, as-built conditions for any application range. The compact, lightweight series of scanners accurately captures a full 360° scan including images in less than three minutes.
