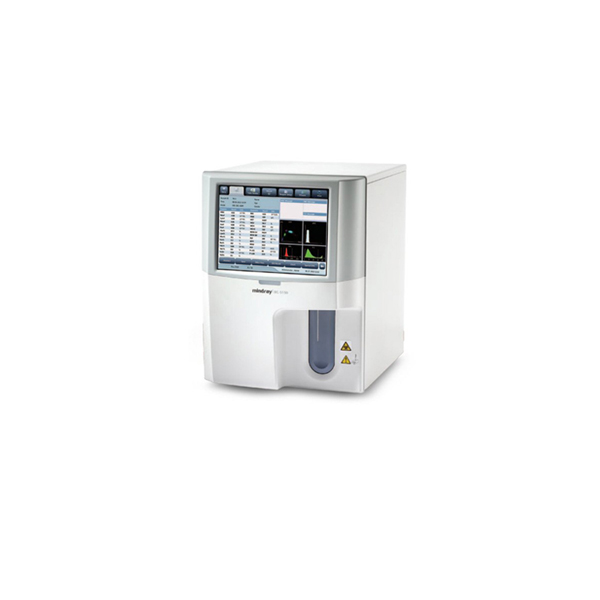

BC-5150, 5-Diff, Hematology Analyzer
Our Price
- full CBC + 5 part differentiation
- tri-angle laser scatter + chemical dye + flow cytometry technology
- dedicated optical counting channel for Basophil measurement
- impedance method for RBC and PLT counting
- smal sample volume of 15µL – ideal for pediatrics
- running capillary blodd through the sample probe directly
- only 3 routine ragents are needed
- easy maintenance
- easy to use
Ready to Ship
Description
- WBC 5-purt differentiation
- 23 reportable parameters (3 histogram & 3 scattergams)
- 60 sample per hour
- Sample volume is only 15 µL which is ideal for pediatrics
- Up to 40,000 results including numeric and graphical information
Physical & Performance
| Parameters | 3 histograms for WBC, RBC and PLT 3 scattergrams for WBC differential |
| Sample volume | Prediluted mode 20µL Whole blood mode 15µL Capillary whole blood mode 15μL |
| Throughput | 60 samples per hour |
| Reagent | Diluent, DIFF lyse, LH lyse, probe cleanser |
| Display | 10.4 inh TFT touch screen |
| Data storage capacity | up to 40,000 patient results including all numeric and graphical information |
| Interface | LAN port supports HL7 protocol |
| Printout | external laser printer / inkjet printer, various printout formats and user-defined formats |
| Power reqirement | 110V-240V, 50Hz/60Hz |
| Operating environment | Temperature: 10-30°C / Humidity: 20-85% / Air pressure: 70kPa-106kPa |
| Dimension / weight | Weight: 24kg, 400mm (W) x 320mm (D) x 410mm (H) |
For detailed specifications refer to the Product Brochure.
Mindray
BC-5150
BC-5150, the 5-part hematology analyzer offers a great solution for clinical labs, especially for those who have limited space. Its compact foot-print is a result of innovative technology improvements, including miniaturized semi-conductor laser source, highly integrated electronic boards and optimized liquid handling system.
