SC-120, 5-Diff, Hematology Analyzer
Our Price
- 7.8” LED touch screen used for management of smear and reagent, performing basic operation and maintenance.
- All patient information, including 1D or 2D barcode, number, as well as text, can be printed on the slide with a thermal printer.
- SC-120 is a standalone unit and it can also be integrated into the Mindray CAL 8000 automation line.
Ready to Ship
Description
Reliable
Technical Specifications

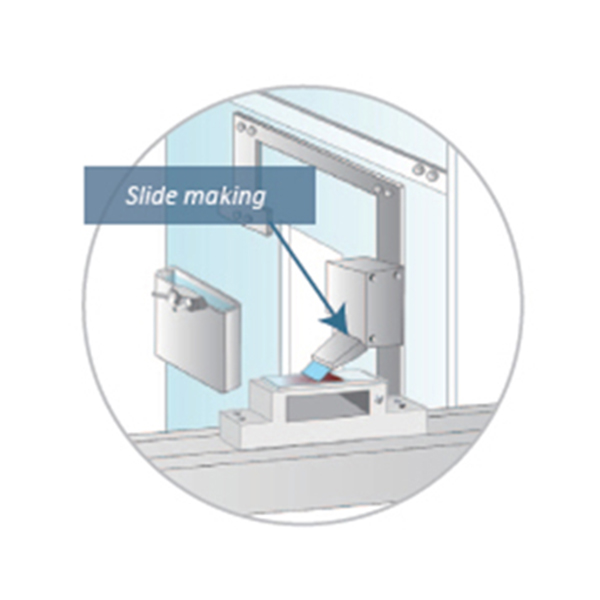

| Technology | Automated slide making & staining by single instrument Automated detection of blood consistency and automated adjustment of blood volume, angle & speed of spreader(or pusher) accordingly to optimize quality of smear (or blood film) |
| Stain protocols | Wright stain, Wright-Giemsa stain May-Grunwald-Giemsa stain With possibility to recycle stains up to 20 times |
| Throughput | Up to 120 stained slides per hour |
| Sample volume | 200μL (autoloader and on track mode) 40μL (Micro-sample mode) |
| Printer | Built-in thermal printer for printing patient information including: 1D or 2D barcode, Number and Text |
| Interface | LAN port * 1, USB port * 4 |
| Configurations | Standalone or on track (CAL 8000 cellular analysis line) |

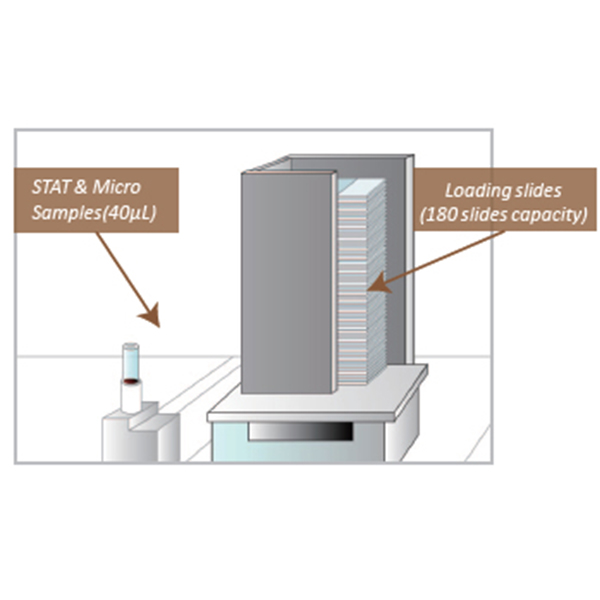

| Autoloader | Load up to 50 sample tubes at once, random access |

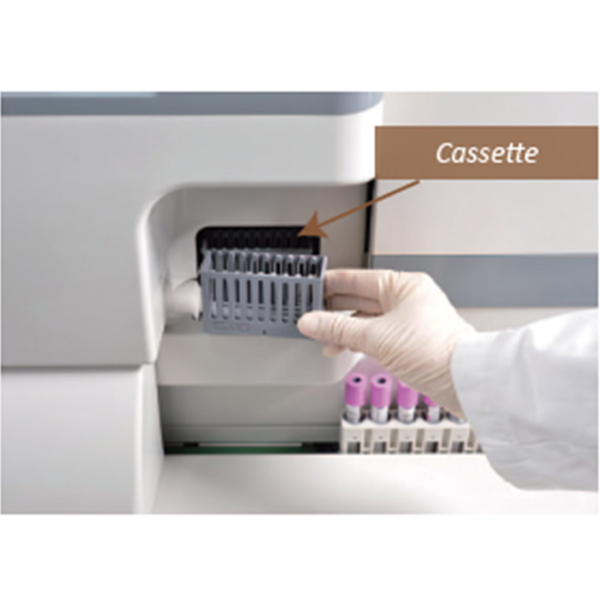

| Cassette | Load up to 10 cassettes at once, each cassettes can hold up to 10 sides |
| Reagents & Consumables | Stains, Buffer fluid, Diluent, Probe cleanser, slides (Mindray provided) Methanol, Deionized water (Locally sourced) |
| Reagent consumption | User-definable permitting up to 20 times recycling of stains |
| Samples | Blood (including slide making & staining) Body fluid & Bone marrow (Staining only for prepared smears) |
| Sample selectivity | Automatic slide making & staining based on user-definable re-exam criteria |
| Slide | 1-5 slides at a time per sample |
| Spreader blade material | Sapphire glass |
For detailed specifications refer to the Product Brochure.
Mindray

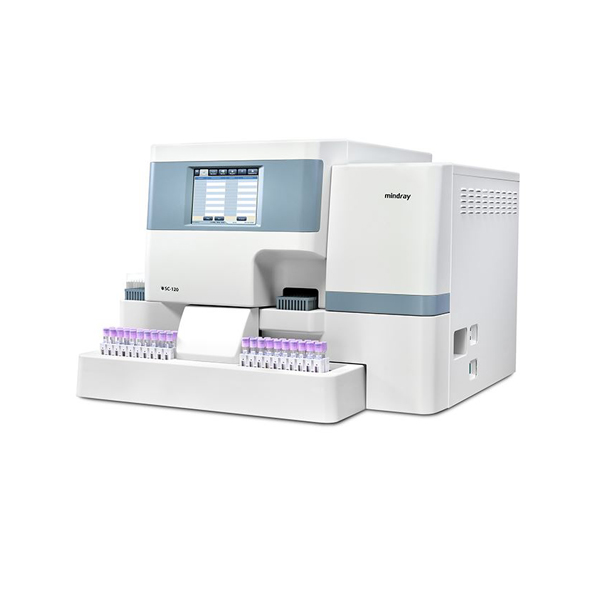

SC-120 Slide Maker & Stainer
SC-120 supports the globally common stain protocols including Wright stain, Wright-Giemsa stain and May-Grunwald-Giemsa stain. All stains solutions could be recycled up to 20 times, this saves over 50% the stains compared to the conventional technologies.
