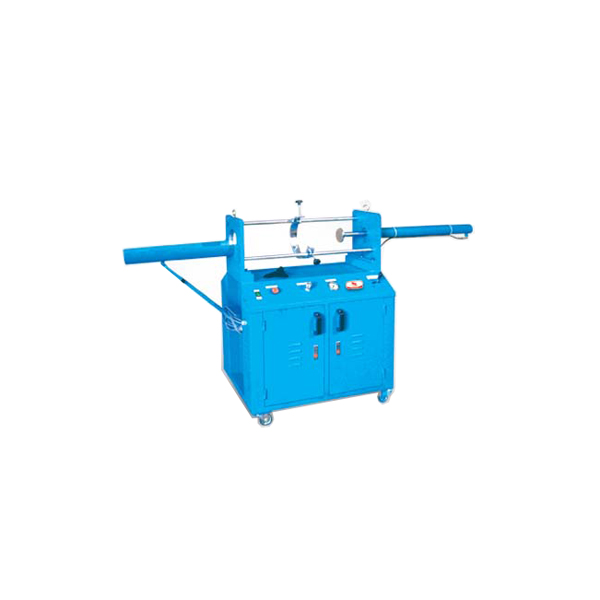

Horizontal Universal Motorised Hydraulic Extruder
Our Price
Motorised hydraulic extruder of undisturbed and disturbed sample from thin wall tube, having Ø 38 to Ø 150 mm with maximum length up to 1000 mm.
Code : NL 5045X/001
Ready to Ship
Description
Technical Specifications
| Standard | BS 598:107/1377:4/1924:2, ASTM D698/D1587/D1883 |
| Dimension | 3700 (L) x 1300 (W) x 1300 (H) mm |
| Max. Stroke | 1000 (L) mm |
| Approx. Weight | 280 kg |
| Power | 220 V, 1 ph, 50 / 60 Hz, 750 W |
Set Consists Of:
| Model Number | Parts Description | Qty |
| NL 5045 X / 001 – P 001 | Sample Extrusion Kit Set Ø 38 mm | 1set |
| NL 5045 X / 001 – P 002 | Sample Extrusion Kit Set Ø 50 mm | 1set |
| NL 5045 X / 001 – P 003 | Sample Extrusion Kit Set Ø 100 mm | 1set |
| NL 5045 X / 001 – P 004 | Sample Extrusion Kit Set Ø 150 mm | 1set |
Optional Accessories:
| Model Number | Accessories Description |
| NL 5045 X / 001 – A 001 | U4 Tube Sample Extrusion Kit Set |
| NL 5045 X / 001 – A 002 | U3 Tube Sample Extrusion Kit Set |
| NL 5045 X / 001 – A 003 | U2 1/2 Tube Sample Extrusion Kit Set |
| NL 5045 X / 001 – A 004 | U2 Tube Sample Extrusion Kit Set |
For detailed specifications refer to the Product Brochure.
