Le Chatelier Soundness Kit
Our Price
Used for determining the expansion of cement, Le Chatelier moulds consists of a spring tensioned split cylinder 30 mm inside and 30 mm high,with two indicator stems attached either side of the split which measure 165 mm from their tips to the centre of the cylinder and an O-Ring. Two or three moulds are required for each test.
Ready to Ship
Description
Technical Specifications
| Model Number | NL 3022 X / 002 |
| Standard | EN 196-3,EN-459-2,ISO 9597,BS 6463,NF P15-432,UNE 80102 |
| Approx.Weight | 1 kg |
| Dimension | 330 (L) X 245 (W) X 80(H) |

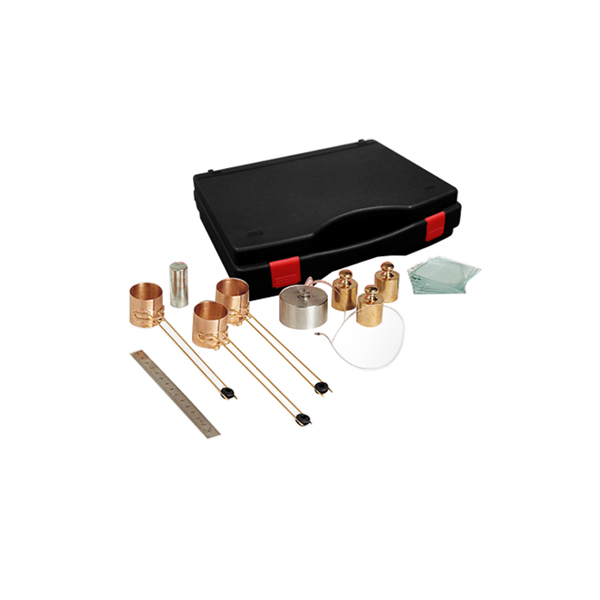

Set Consists Of
| Model Number | Parts Description | Qty |
| NL 3022 X / 001 – P 001 | 50 x 50 mm Glass Plates | 6pcs |
| NL 3022 X / 001 – P 002 | 100 g Weights Set | 3nos |
| NL 3022 X / 001 – P 003 | Le Chatelier Moulds | 3Nos |
| NL 3022 X / 001 – P 004 | Extensibility of Mould Apparatus | 1no. |
| NL 3022 X / 001 – P 005 | Tamping rod,17 mm Dia. x 70 g Weight | 1no. |
| NL 7055 X / 001 | Steel Ruler | 1no. |
For detailed specifications refer to the Product Brochure.
NL Scientific
Le Chatelier Soundness Kit
Used for determining the expansion of cement, Le Chatelier moulds consists of a spring tensioned split cylinder 30 mm inside and 30 mm high,with two indicator stems attached either side of the split which measure 165 mm from their tips to the centre of the cylinder and an O-Ring. Two or three moulds are required for each test.
