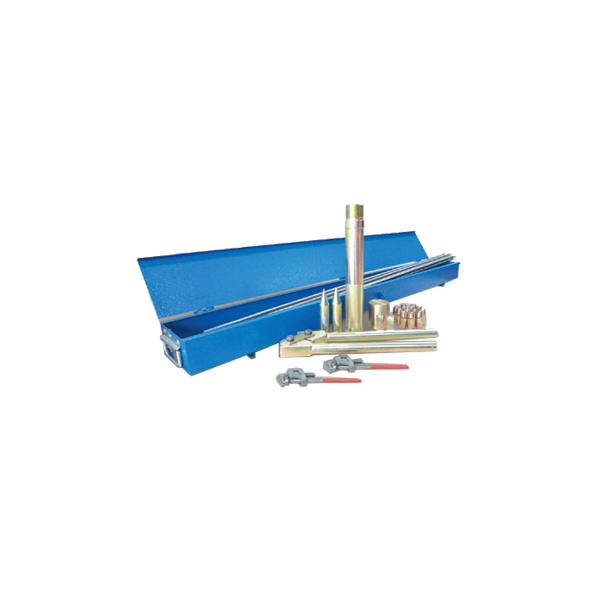

Mackintosh Probe Apparatus
Our Price
- This equipment is particularly useful for initial site investigation work in remote area.
- Use in conjunction with control boreholes considerable area can be investigated quickly and cost effectively.
- The set capable probing up to 13 meters depth depending on ground condition.
Code : NL 5009 X / 001
Ready to Ship
Description
Technical Specifications
| Dimension | 1230 (L) x 155 (W) x 125 (H) mm |
| Approx. Weight | 27 kg |
Set Consists Of
| Model Number | Parts Description | Qty |
| NL 5009 X / 001 – A 001 | Penetration Rod (47¼ inch each) | 13nos. |
| NL 5009 X / 001 – A 002 | Coupling | 13nos. |
| NL 5009 X / 001 – A 003 | Pipe Wrenches (200 mm) | 2nos. |
| NL 5009 X / 001 – A 004 | Penetration Cone (MAC) | 2nos. |
| NL 5009 X / 001 – A 005 | Hammer Nut (MAC) | 2nos. |
| NL 5009 X / 001 – A 006 | Hammer (4.5 kg) | 1no. |
| NL 5009 X / 001 – A 007 | Lifting Handle | 1no. |
| NL 5009 X / 001 – A 008 | Heavy Duty Steel Carrying Case | 1no. |
Optional Accessories
| Model Number | Accessories Description |
| NL 5009 X / 001 – A 009 | Hand Jack Lifting Tool |
For detailed specifications refer to the Product Brochure.
NL Scientific
Mackintosh Probe Apparatus
This equipment is particularly useful for initial site investigation work in remote area. Use in conjunction with control boreholes considerable area can be investigated quickly and cost effectively. The set capable probing up to 13 meters depth depending on ground condition.
Out Stock
