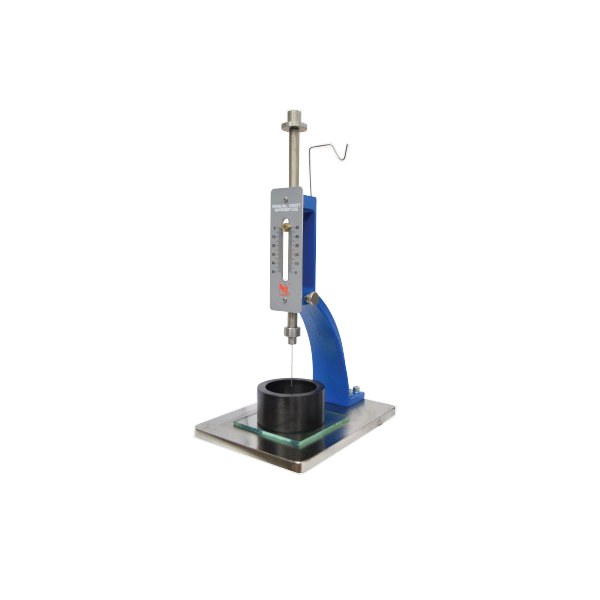

Manual Vicat Apparatus
Our Price
- The vicat frame consists essentially of a metal stand with a sliding rod.
- An adjustable indicator moves over a graduated scale.
- The needle or plunger is attached to the bottom end of the rod to make up the test weight of 300 g.
- The frame is supplied with basic BS EN accessories.
Email when stock available
Description
Technical Specifications
| Standard | BS EN 196-3/480-2 |
| Dimension (mm) | 215(W)x160(L)x323(H) |
| Approx. Weight | 4.0 kg |
Set Consists Of
| Model Number | Parts Description | Qty |
| NL 3012 X / 003 – P 001 | Conical Plastic Mould – Ø70/80×40 (H) mm | 1no. |
| NL 3012 X / 003 – P 002 | Initial Needle Ø 1.13 mm ± 0.05 | 1no. |
| NL 3012 X / 003 – P 003 | Final Needle Ø 1.13 mm ± 0.05 | 1no. |
| NL 3012 X / 003 – P 004 | Consistency Plunger Ø10mm | 1no. |
| NL 3012 X / 003 – P 005 | Glass Plate 4 x 98 x 98 mm | 2nos. |
Optional Accessories
| Model Number | Parts Description |
| NL 3012 X / 003 – A 001 | Additional Weight 700g (BS/EN) |
| NL 3012 X / 003 – A 002 | Conical Brass Mould (BS) |
| NL 7034 X / 005 | Glass Thermometer 0 – 50°C x 1°C div |
For detailed specifications refer to the Product Brochure.
NL Scientific
Manual Vicat Apparatus
The vicat frame consists essentially of a metal stand with a sliding rod. An adjustable indicator moves over a graduated scale. The needle or plunger is attached to the bottom end of the rod to make up the test weight of 300 g. The frame is supplied with basic BS EN accessories.
