Manual Vicat Apparatus ASTM & AASHTO
Our Price
Determination of Setting Time & Consistency of Cement

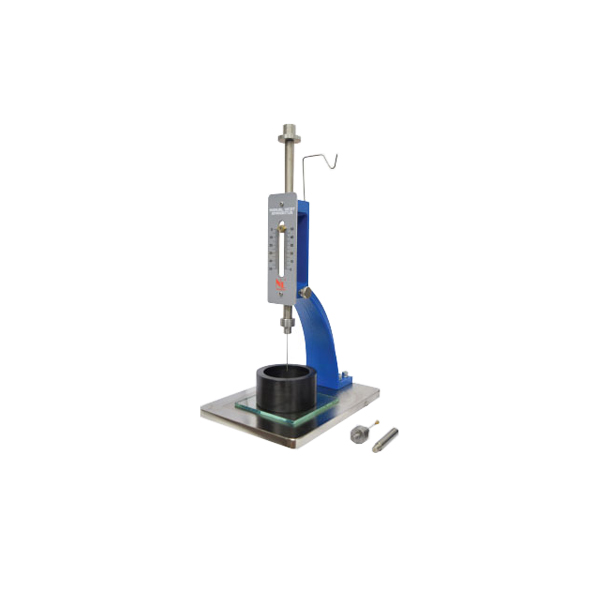

- The vicat frame consists essentially of a metal stand with a sliding rod.
- An adjustable indicator moves over a graduated scale.
- The needle or plunger is attached to the bottom end of the rod to make up the test weight of 300 g.
- The frame is supplied with basic ASTM & AASHTO accessories.
Ready to Ship
Description
Technical Specifications
| Standard | ASTM C187-04, ASTM C191-04, AASHTO T 129-06, AASHTO T131-06 |
| Model Number | NL 3012 X / 004 |
| Dimension (mm) | 215(W)x160(L)x323(H) |
| Approx. Weight | 4.0 kg |
Set Consists Of
| Model Number | Parts Description | Qty |
| NL 3012 X / 004 – P 001 | Conical Plastic Mould – Ø60/70×40 (H) mm | 1no. |
| NL 3012 X / 004 – P 002 | Initial Needle Ø 1.0 mm ± 0.05 | 1no. |
| NL 3012 X / 004 – P 003 | Final Needle Ø 1.0 mm ± 0.05 | 1no. |
| NL 3012 X / 003 – P 004 | Consistency Plunger Ø10mm | 1no. |
| NL 3012 X / 003 – P 005 | Glass Plate 4 x 98 x 98 mm | 2nos. |
Optional Accessories
| Model Number | Parts Description |
| NL 7034 X / 005 | Glass Thermometer 0 – 50°C x 1°C div |
For detailed specifications refer to the Product Brochure.
NL Scientific
Manual Vicat Apparatus ASTM & AASHTO
The vicat frame consists essentially of a metal stand with a sliding rod. An adjustable indicator moves over a graduated scale. The needle or plunger is attached to the bottom end of the rod to make up the test weight of 300 g. The frame is supplied with basic ASTM & AASHTO accessories.
