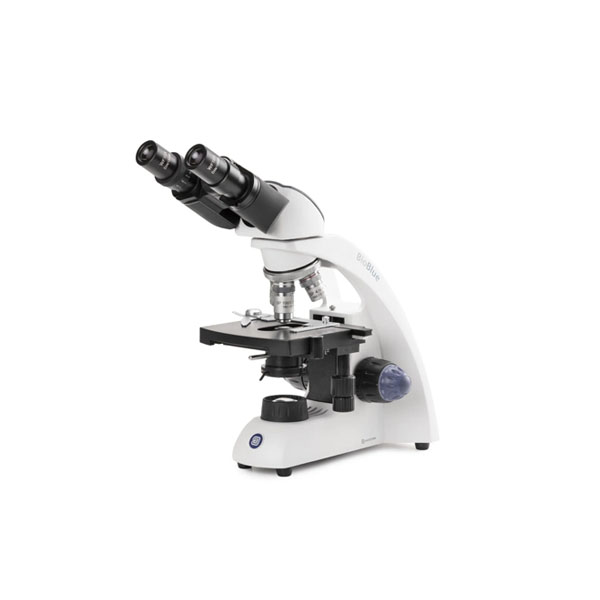

Microscope, Bino, LED, Euromex BioBlue, w/rechar battery
- WF10x/18mm eyepiece(s)
- BioBlue EVO models with WF 10x/20 mm eyepieces and Köhler NeoLED illumination
- Models with integrated 5.0 MP CMOS camera or with a 7” LCD screen
- Models for polarization applications
- Provided with APL (Antimicrobial Protection Layer)
- Reversed nosepiece for 4 semi plan objectives
- Integrated X-Y mechanical stage
- Coaxial coarse and fine adjustments with rack stop
- Height adjustable Abbe condenser with iris diaphragm and filter holder
- Monocular models with 1 W LED illumination
- Binocular and trinocular models supplied with 1 W NeoLED illumination for increased light output
- LED models with rechargeable AA batteries and integrated power supply
- Ergonomic stand
- Warranty 10 years
This price is inclusive of 5% commercial tax.
Description
OBJECTIVES – 45 MM PARFOCAL
Supplied with semi plan 4x/0.10, 10x/0.25, S40x/0.65, S60x/0.85, S100x/1.25 oil immersion objectives configuration is depending on model
The S40x, S60x and S100x oil immersion objectives are spring loaded (to prevent damage to sample and objectives)
F O C U S S I N G
Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation
Total travel approximately 23 mm
Supplied with an adjustable rack stop to prevent damage to sample and objectives
The coarse adjustment is equipped with friction control
STAGE
130 x 130 mm with mechanical 70 x 28 mm X-Y translation stage except for models BB.4200 and BB.4205
These models have a 120 x 120 mm plain stage supplied with two non-removable object clamps
The models for polarization are supplied with 129 mm round stage, 360° rotatable and two object clamps
POLARIZATION MODELS
Equipped with analyzer, mounted in a slider under the head
360° Rotatable, graduated polarizer on the lamp house
Standard supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum) and an integrated
100-240 Vac power supply
Polarisation attachments for standard microscopes are available optionally
CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
ILLUMINATION
Binocular and trinocular models are supplied with an intensity adjustable 1 W NeoLED™ illumination system for increased light output
Monocular models are supplied with an adjustable 1W LED illumination
The models for polarization are supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum) and an integrated 100-240 V power supply. However 20 W halogen illumination is also available for polarization models on special request
The EVO models are equipped with Köhler NeoLED™ illumination
All BioBlue microscopes are supplied with rechargeable AA batteries and integrated 100-240 V power supply for cordless operation. LCD versions do not run on batteries
CAMERA
All the BioBlue digital microscopes are equipped with a 5.0 MP CMOS USB-2 camera
Maximum resolution 2560 x 1920, 24 bits color depth, up to 30 frames per second
Delivered with ImageFocus Plus software, USB-2 cable and a micrometer 1mm/100 slide
Warranty for the camera is 2 years
SOFTWARE
The ImageFocus Plus software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos.
Images can be annotated and measurements can be performed in live or captured images
Compatible with Windows 10 and higher, both 32 and 64 bits configurations
Mac OS version is also available
Updates can be downloaded on our website www.euromex.com
MODELS WITH LCD SCREEN
7” IPS LCD screen
Screen resolution 1920 x 1080 @ 30 fps
Save images and videos directly to micro SD card
Image resolution upto 1844 x 1080 in JPEG format
Video resolution 1280 x 720 AVI format
Basic measurement function (line) with calibration. Calibration slide available as option
Warranty for the screen is two years
Specifications
| EYEPIECE(S) | WF10x/18mm Wide field |
| HEAD | All heads are 360 degree rotatable and secured
Binocular model has 30 degree inclined tubes, interpupillary distance is adjustable between 48 and 75mm and equipped with a ± 5 diopter adjustment on the left tube |
| NOSEPIECE | Reversed quadruple nosepiece on ball bearings. |
| OBJECTIVES |
|
| FOCUSING |
|
| STAGE | 130 x 130mm with mechanical 70 x 28mm X-Y translation |
| CONDENSER | Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder |
| ILLUMINATION |
|
| PACKAGE CONTENT |
|
For detailed specifications refer to the Product Brochure.
Euromax, Belgium
Microscope, Bino, LED, Euromex BioBlue
Extensive experience of Euromex optical engineers has contributed to the development and implementation of the BioBlue series with the finest optical components and guaranteed performance, which means clear bright images at every magnification. The modern microscopes of the BioBlue series are especially developed for educational purposes with primary focus on ergonomic and today’s quality standards.
These microscopes are supplied with secured eyepieces and adjustable rack stop to prevent damage to sample and objectives. The DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45mm DIN objectives of the BioBlue BB4260 generate a crisp high-resolution image. When changing magnification the image remains perfectly in focus and centered. The 130 x 130mm stage with double layered 70 x 28mm X-Y mechanical stage enable precision positioning of the specimen.
