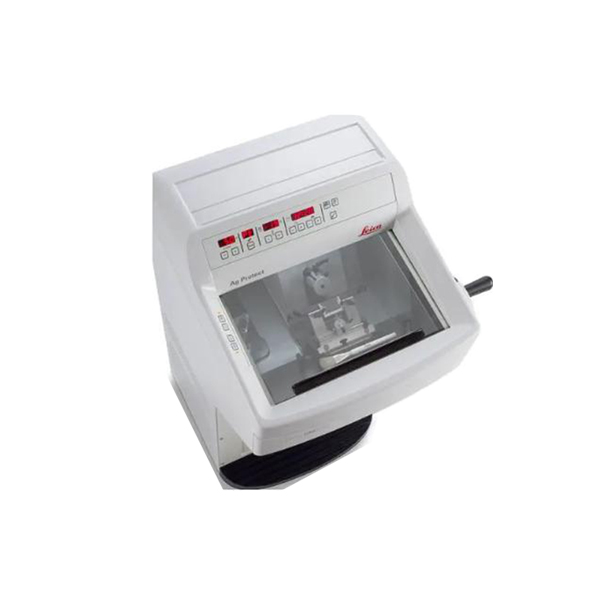

CM1860 Cryostat ,Microtome (With UV)
- The Leica CM1860 UV was developed with an emphasis on diagnostic confidence, safety and ergonomics.
- The high-throughput cryostat creates diagnostic confidence by reliably producing quality sections that help provide an accurate diagnosis.
- Leica CM1860UV – an oasis of safety and comfort in your laboratory.
Description
Confidence is Vital
Deliver diagnostic confidence
When you’re preparing fresh tissue for a vital diagnosis, you need to know that your cryostat will reliably deliver quality sections. That’s why the Leica CM1860 has the precision to consistently cut thin sections and the reliability that means it’s ready whenever a patient needs your skills to provide an accurate diagnosis.
Safety is Vital
Reduce your exposure to infection and injury Cryomicrotomy requires handling un-fixed tissue and performing repetitive tasks. That’s why the Leica CM1860 helps protect against potential biohazardous exposures and provides ergonomic features that can reduce musculoskeletal disorders (MSD).
Efficiency is Vital
Create a Lean Histology™ laboratory Increase efficiency with a Leica cryostat and better utilize your existing resources. The Leica CM1860 will help improve the workflow and productivity of any high-throughput clinical laboratory.
Technical Specifications
| Microtome | |
| Section thickness selection | 1 – 100 μm |
| Total specimen feed | 25 mm |
| Vertical specimen stroke | 59 mm |
| Maximum specimen size | 55 x 55 mm or 50 x 80 mm |
| Specimen orientation | 8° (x, y, z-axis) |
| Electric coarse feed, slow | 600 μm/s |
| Electric coarse feed, rapid | 900 μm/s |
| Refrigeration system | 50 Hz/60 Hz |
| Cryochamber | |
| Temperature setting range | 0 °C to -35 °C (+3 K/-3 K) |
| Cooling time down to -35 °C | max. 6 hours, at 22 °C ambient temperature |
| Defrost | Automatic hot gas defrost, 1 automatic defrost cycle/24 hours, time-controlled (duration 12 min.) |
| Quick-freeze shelf | |
| Maximum | -40 °C (0 K/- 5 K) |
| Number of freezing stations | 8 |
| Defrost | Manual hot gas defrost, time-controlled (duration 12 min.) |
| Peltier element | |
| Max. temperature difference | 17K, at -35 °C chamber temperature |
| Number of freezing stations | 2 |
| Defrost | In conjunction with the quick-freeze shelf |
| Dimensions and weights | |
| Width (w/o handwheel ) | 600 mm/23.6 in |
| Width (with handwheel) | 730 mm/28.7 in |
| Depth | 730 mm/28.7 in |
| Height | 1140 mm/44.8 in |
| Weight (incl. microtome, without specimen cooling) | approx. 135 kg/298 lbs |
| UVC surface disinfection (Leica CM1860 UV only) | 30 or 180 minutes, user selectable |
For detailed specifications refer to the Product Brochure.
Leica Biosystems
Microtome, CM1860
The Leica CM1860 UV was developed with an emphasis on diagnostic confidence, safety and ergonomics. The high-throughput cryostat creates diagnostic confidence by reliably producing quality sections that help provide an accurate diagnosis.
Staff near the cryostat is protected by the certified UVC disinfection, that efficiently reduces pathogen contamination, including SARS-CoV-2. The antimicrobial nano-silver coating, AgProtect, provides outstanding safety by reducing exposure to surface pathogens.
The unique premium blade holder adds to the personal protection and ergonomics with a designated finger guard, blade ejector and palm rest for brush technique users.
Leica CM1860UV – an oasis of safety and comfort in your laboratory.
