Microtome, Rotary, Manual Mechanical, Histocore Biocut, 40 µm
- Quickly and efficiently select the turn direction most comfortable for you with the Personalized Coarse Feed Wheel.
- Shorten cleaning time from minutes to seconds with the Antistatic Waste Tray.
- Switch between high and low-profile blades even faster without changing blade holders by using the 2-in-1 Blade Holder.
Description
Passionate about Quality, Committed to Safety

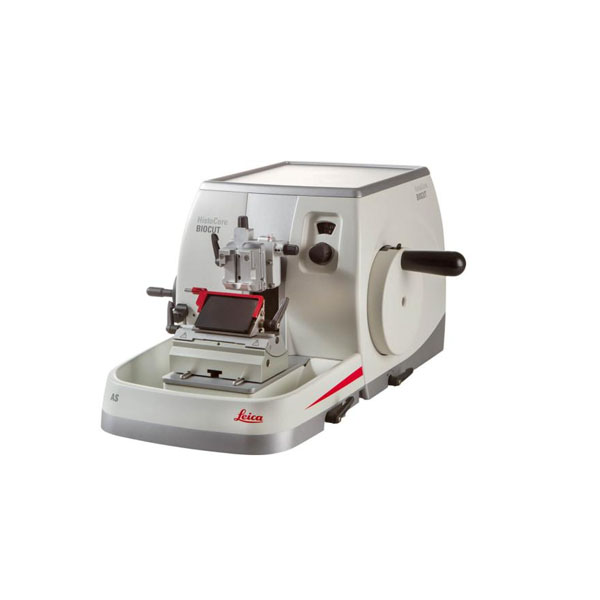

HistoCore BIOCUT Rotary Microtome
For over 145 years, Leica Biosystems has been the global leader in microtomy. Our reliable and precise microtomes are designed to provide high quality sections, resulting in the outstanding uptime you expect. With our new manual HistoCore BIOCUT clinical rotary microtome and years of experience, we bring the ART OF SECTIONING to your laboratory.
MAXIMIZE USER COMFORT AND EFFICIENCY
Personalized coarse feed wheel provides improved comfort and helps reduce fatigue while trimming.
The unique force balance system handles block sizes from biopsy to Super Cassette size, minimize the risk of injury by an unbalanced object head.
QUICK AND EASY CLEANING WITHIN SECONDS
The antistatic waste tray reduces contamination and provides unmatched efficiency through shortened cleaning times from minutes to seconds.
DESIGNED FOR HIGH QUALITY IHC SECTIONS
Produce high quality paraffin sections for H&E, IHC and molecular techniques.
Specimen cooling option allows for the block temperature to stay colder longer using the electrically cooled RM CoolClamp for standard cassettes, especially when cutting multiple sections for IHC or serial sections.
YOUR COMPLETE SOLUTION TO MICROTOMY
The HistoCore PERMA S slide printing solution generates permanently printed slides at any microtome workstation, providing improved workflow and helps reduce errors in patient labeling.
Keep your lab running smoothly with a complete line of high- and low-profile blades, cleaners and other accessories.
TECHNICAL DATA
| Type of microtome | Mechanical |
DIMENSIONS AND WEIGHT
| Width (including handwheel and coarse feed wheel) Depth (including the section waste tray) Height (without top tray) H x W x D: |
477 mm x 620 mm x 295 mm |
| Weight (without accessories): | Approx. 31 kg |
MICROTOME
| Section thickness setting range: | 1 – 60 µm |
| Trimming section thickness setting range: | 10 µm, 30 µm |
| Specimen feed: | Approx. 24 mm ±2 mm |
| Vertical stroke: | 70 mm ±1 mm |
| Maximum specimen size (H x W x D): |
Large standard clamp: 55 x 50 x 30 mm Super Cassette clamp: 68 x 48 x 15 mm |
| Unique force balance system | Yes |
| Specimen retraction: | Approx. 40 µm; can be turned off |
| Personalized coarse feed wheel | user selectable |
| Specimen orientation with zero postion horizontal / vertical rotation: |
± 8°/ ± 8° |
| Waste tray | Antistatic |
For detailed specifications refer to the Product Brochure.
