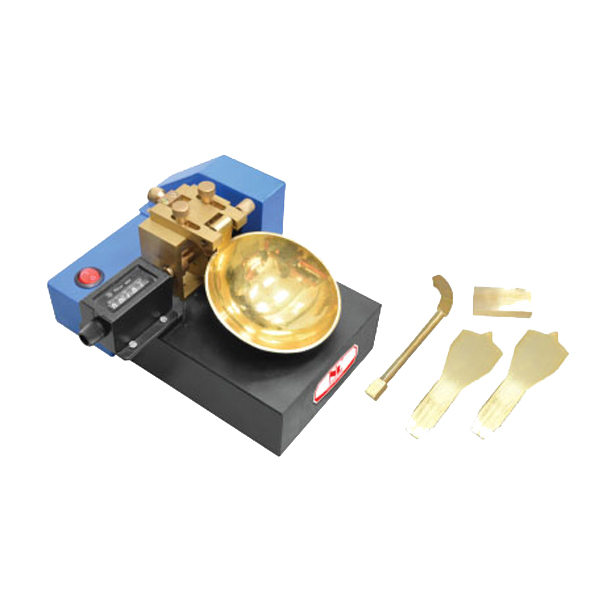

Motorized Liquid Limit Apparatus
Our Price
Particular design to determine the moisture content at which clay soil pass from plastic to liquid state.
Available in 2 models:
1. Hand operated through crank.
2. Electrical operated at 120 blows per minute based on standard.
Email when stock available
Description
Technical Specifications:
| Model Number | NL 5008 X / 002 |
| Type | Motorized – Operated |
| Dimension (mm) | 230 (L) x 135 (W) x 185 (H) |
| Approx. Weight | 6.3 kg |
| Power | 240 V, 1 ph, 50 / 60 Hz, 6 A, 0.075 W |
Unit Consists Of:
Model Number |
Parts Description |
Qty |
| NL 5008 X / 002 – P 001 | Grooving Tool (BS) | 1no. |
| NL 5008 X / 002 – P 003 | Grooving Tool (ASTM) | 1no. |
| NL 5008 X / 002 – P 004 | Grooving Tool (AASHTO) | 1no. |
| NL 5008 X / 002 – P 002 | Calibration Block | 1no. |
For detailed specifications refer to the Product Brochure.
