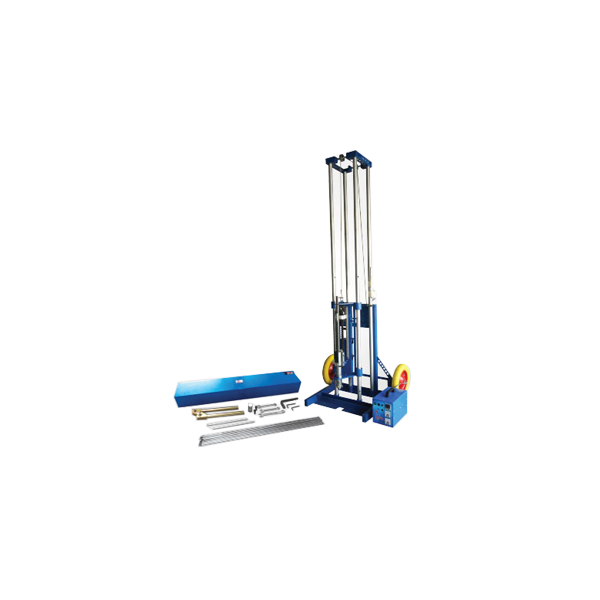

Motorized Mackintosh / JKR Probe
Our Price
- The equipment is particularly used for initial site investigation.
- Use in conjunction with control boreholes considerable are can be investigated quickly and cost effectively.
- Supplied complete with DC rechargeable power unit.
- The set capable probing to 13 meters depth, depend on ground condition.
- The unit comes with hoist lifting mechanism to pull out the extension rod after probing.
Code : NL 5009X/005
Ready to Ship
Description
Technical Specifications
| Dimension | 970 (L) x 770 (W) x 2300 (H) mm |
| Hammer Height | 300 mm (MAC Probe), 280 mm (JKR Probe) |
| Hammer Weight | 4.5 kg (MAC Probe), 5 kg (JKR Probe) |
| Approx. Weight | 128 kg |
| Power | 12 V DC, Rechargeable & 220 V, 1 ph, 8 A |
Set Consists Of
| Model Number | Parts Description | Qty |
| NL 5009 X / 005 – P 010 | Rod Adaptor | 1no. |
| NL 5009 X / 001 – P 001 | Penetration Rod 47¼ inch (L) | |
| NL 5009 X / 001 – P 002 | Coupling | |
| NL 5009 X / 001 – P 003 | Pipe Wrench 200 mm (L) | |
| NL 5009 X / 001 – P 004 | Penetration Cone MAC | |
| NL 5009 X / 001 – P 004 | Penetration Cone JKR | |
| NL 5009 X / 005 – P 001 | Portable Control Unit | 1no. |
| NL 5009 X / 001 – P 007 | Lifting Handle | 1no. |
| NL 5009 X / 001 – P 008 | Heavy Duty Steel Carrying Case | 1no. |
| NL 5009 X / 005 – P 002 | JKR Counter Weight Pices, 0.5 kg | 1no. |
| NL 5009 X / 003 – P 003 | Tools Kit |
Optional Accessories
| Model Number | Accessories Description |
| NL 5009 X / 001 – A 009 | Hand Jack Lifting Tool |
Manual Operation Accessories
| Model Number | Accessories Description |
| NL 5009 X / 001 – P005 | Hammer Nut (MAC) |
| NL 5009 X / 001 – P006 | Hammer (4.5 kg) |
| NL 5009 X / 002 – P005 | Hammer Nut (JKR) |
| NL 5009 X / 002 – P006 | Hammer (JKR) |
For detailed specifications refer to the Product Brochure.
NL Scientific
Motorized Mackintosh / JKR Probe
The equipment is particularly used for initial site investigation. Use in conjunction with control boreholes considerable are can be investigated quickly and cost effectively. Supplied complete with DC rechargeable power unit. The set capable probing to 13 meters depth, depend on ground condition. The unit comes with hoist lifting mechanism to pull out the extension rod after probing.
Out Stock
