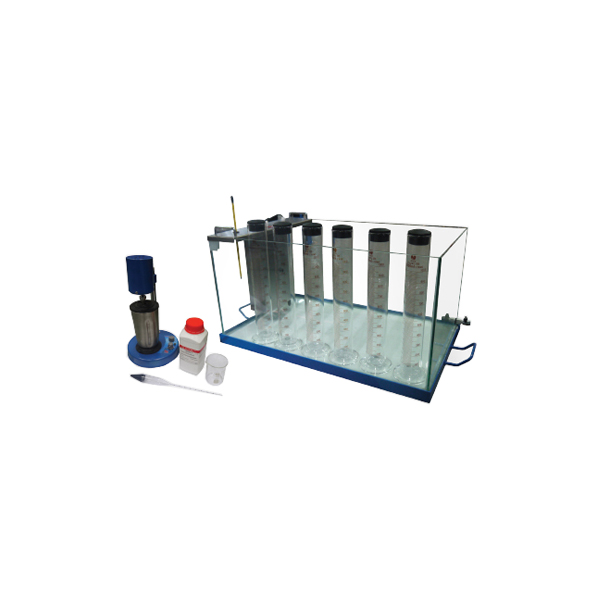

Particle Size Analysis Of Soil Apparatus
Our Price
- To determine the particle size distribution of very fine materials such as silt and clay.
- To perform the test the following apparatus is required which can be selected as single items or grouped in a complete set.
Code : NL 5024X/001
Ready to Ship
Description
Technical Specifications
| Standard | ASTM D422, AASHTO T88 / UNE 103.102 |
| Approx. Weight | 19 kg (Total Set) |
Set Consists Of
| Model Number | Parts Description | Qty |
| NL 5024 X / 001 – P 001 |
Constant Temperature Water Bath c/w Heater & Circulating Pump 240 V, 1 ph, 50 / 60 Hz |
1no. |
| NL 5024 X / 001 – P 002 | Hydrometer Jar 1000 ml | |
| NL 5024 X / 001 – P 003 | Hydrometer Jar Rubber Bung | 1no. |
| NL 7010 G / 001 | Soil Hydrometer Long Stem 151H.0.995-1.038 g / ml | 1no. |
| NL 7034 X / 018 | Glass Thermometer 0 to 50°C x 0.5°C | 1no. |
| NL 7002 G / 004 | Glass Beaker with Spout 250 ml | |
| NL 7029 CM / 003 | Sodium Hexametaphosphate 1000 g / btl | |
| NL 5024 X / 001 – P 009 | High Speed Stirrer, 1000 RPM c/w cup & Baffle 240 V, 1 ph, 50 / 60 Hz |
1no. |
Optional Accessories
| Model Number | Accessories Description |
| NL 7029 CM / 002 | Sodium Carbonate (1000 g) |
For detailed specifications refer to the Product Brochure.
NL Scientific
Particle Size Analysis Of Soil Apparatus
To determine the particle size distribution of very fine materials such as silt and clay. To perform the test the following apparatus is required which can be selected as single items or grouped in a complete set.
