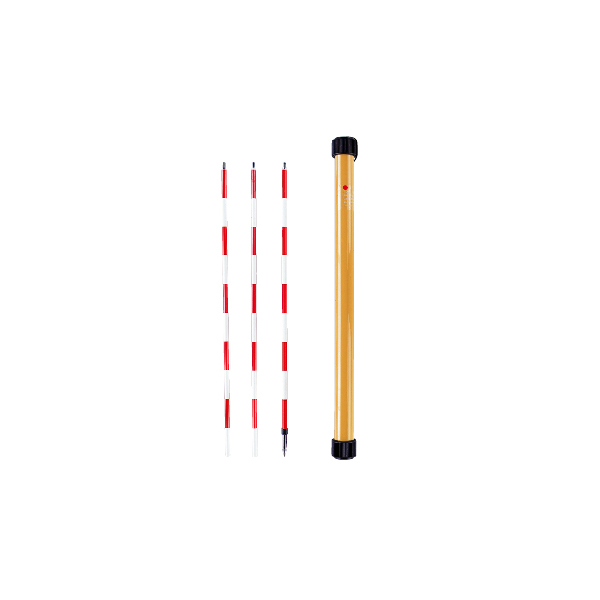

DMP9 ,Pin Pole
Our Price
- Securely support prism
- Non-rust by stainless and high straightness
- Changeable shoe
- 4 longer size precision poles are available (DMP-1500/1200/1000/500)
- Un-dropping stopper system on DMP-50 (PAT.P)
Ready to Ship
Description
- Securely support prism
- Non-rust by stainless and high straightness
- Changeable shoe
- 4 longer size precision poles are available (DMP-1500/1200/1000/500)
- Un-dropping stopper system on DMP-50 (PAT.P)
Technical Specifications:
| Code No. | Model | Length | Diameter | Material | Accessories | Feature |
| 101915 | DMP-9 | 50cm x 3joints | 9mm | Stainless | Hard case
(DMP-C) |
Standard type/ Changeable shoe |
| 032025 | DMP-9MINI | 30cm x 5joints | 9mm | Stainless | Soft case | Shorter section |
| 101917 | DMP-1500 | 1.5m | 9mm | Stainless | Pipe case | Precision type |
| 221487 | DMP-1200 | 1.2m | 9mm | Stainless | Pipe case | Precision type |
| 101918 | DMP-1000 | 1.0m | 9mm | Stainless | Pipe case | Precision type |
| 101920 | DMP-500 | 50cm | 9mm | Stainless | Pipe case | Precision type |
For detailed specifications refer to the Product Brochure.

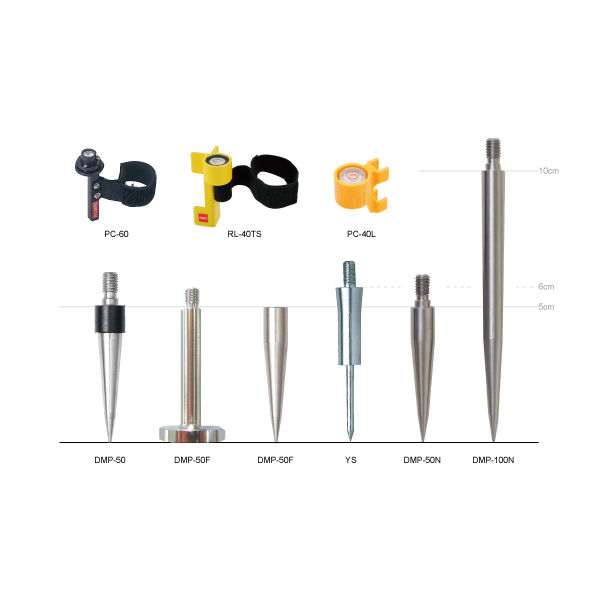

| Code No. | Model | Reference |
| 101919 | DMP-50 | Shoe / with stopper ring / 5cm |
| 219848 | DMP-50F | Shoe / Flat / 5cm |
| 219524 | DMP-M6 | Shoe / Female / 5cm |
| 210003 | YS | Shoe / Sharp tip / 6cm |
| 222162 | DMP-100N | Shoe / 10cm |
| 222163 | DMP-50N | Shoe / 5cm |
| 212820 | DMP-C | Aluminium case / DMP-9’s accessory |
| 215920 | DMP-9L | 50cm additional pole |
| 215921 | DMP-9S | 45cm additional pole |
| 215930 | DMP-9ML | 30cm additional pole |
| 215931 | DMP-9MS | 25cm additional pole |
| 111117 | PC-60 | Circular level for DM pin pole / 60’/2mm |
| 218860 | RL-40TS | Circular level for DM pin pole / 40’/2mm |
| 220477 | PC-40L | Circular level for DM pin pole / 46’/2mm |
For detailed specifications refer to the Product Brochure.
