Plate Bearing Equipment
Our Price
- Plate Bearing Equipment is used to estimate the bearing capacity of a soil under field loading condition.
Code : NL 5010X /002
Email when stock available
Description
Technical Specifications
| Standard | BS 1377:9, ASTM D1194, D1195, D1196 |
| Capacity | 500 kN (50 Tons) |
| Approx. Weight | 105 kg |

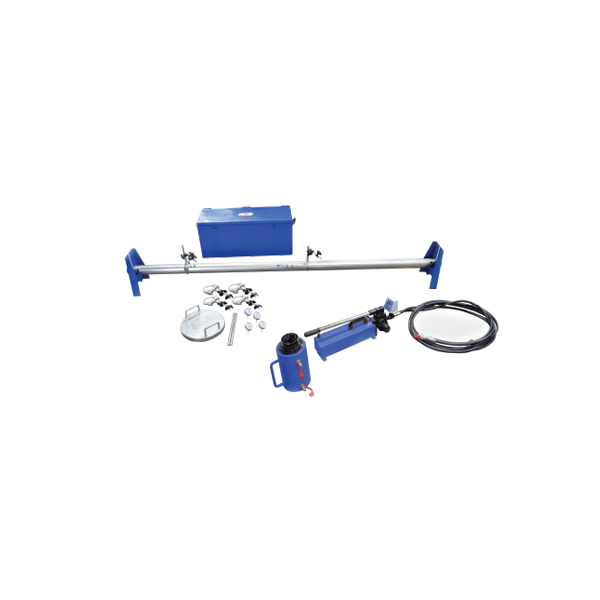

Set Consists Of
| Model Number | Parts Description | Qty |
| NL 5010 X / 002 – P 001 | 500kN (50 Tons) Single Acting Hydraulic Cylinder with Spherical Seat | 1no. |
| NL 5010 X / 002 – P 002 | Hand Operated 2 Speed Pump c/w 4 m Hydraulic Hose | 1set |
| NL DLG 100 | Digital Load Gauge | 1no. |
| NL 5010 X / 002 – P 004 | Loading Plate Ø 305 mm x 32 mm | 1no. |
| NL 5010 X / 002 – P 005 | Carrying Case | 1no. |
| NL 5010 X / 002 – P 007 | Datum Bar 2.4 m (L) with Steel Feet | 1set |
| NL 5010 X / 002 – P 008 | Articulated Dial Gauge Support with Adjustment Device | 4nos. |
| NL 5010 X / 002 – P 009 | Tool Kit Set | 1pck. |
| NL 7020 X / 001 | Dial Gauge 25 mm x 0.01 mm | 4nos. |
Optional Accessories
| Model Number | Accessories Description |
| NL 5010 X / 002 – A 001 | Loading Plate Ø 457 mm x 32 mm |
| NL 5010 X / 002 – A 002 | Loading Plate Ø 610 mm x 32 mm |
| NL 5010 X / 002 – A 003 | Loading Plate Ø 762 mm x 32 mm |
For detailed specifications refer to the Product Brochure.
