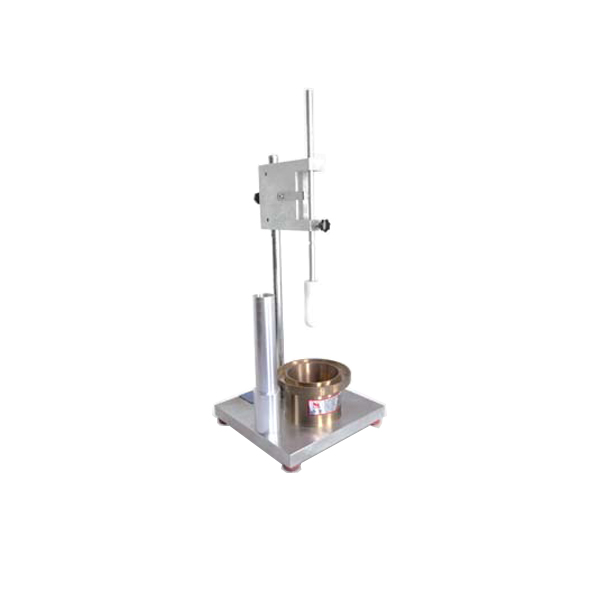

Plunger Penetration Apparatus
Our Price
The apparatus used for determine the consistency of fresh mortar, lime and masonry cement. Consisting of a steel base with recess to house the test cup and the vertical column holding the penetration plunger assembly with drop height of 100 mm.
Email when stock available
Description
Technical Specifications
| Standard | EN 413-2, EN 459-2, EN 1015-4 |
| Dimension | 200 (L) x 200 (W) x 700 (H) mm |
| Approx. Weight | 9 kg |
Set Consists Of :
| Model Number | Parts Description | Qty |
| NL 3011 X / 001 – P 001 | Test Cup (80 mm Ø x 70 mm depth) | 1no. |
| NL 3011 X / 001 – P 002 | Tamper | 1no. |
| NL 3011 X / 001 – P 003 | Metal Sheathed | 1no. |
| NL 3011 X / 001 – P 004 | Rigid Stand | 1no. |
| NL 3011 X / 001 – P 005 | Penetration Plunger (90 g) | 1no. |
For detailed specifications refer to the Product Brochure.
