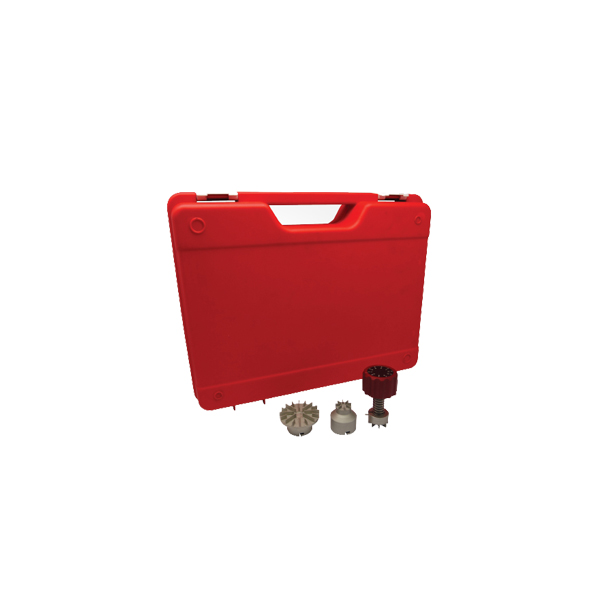

Pocket Shear Vane Device
A scientifically designed soil testing instrument for the rapid determination of shear strength of cohesive soils, either in the field or in the laboratory. It permits the determination of a large number of strength values with different orientation of failure planes. The tester is simple to use and sample trimming is eliminated. All that is required is a reasonably flat surface 25 mm in diameter.
Code : NL 5016X/001
Description
Technical Specifications
| Model Number | NL 5016 X / 001 |
| Dimension (mm) | 345 (L) x 275 (W) x 80 (H) |
| Approx. Weight | 1 kg |
Unit Consists Of
| Model Number | Specifications | Qty |
| NL 5016 X / 001 – P 001 | Vane (Measuring Range 0 – 0.2 kg/cm2) | 1no. |
| NL 5016 X / 002 – P 002 | Vane (Measuring Range 0 – 1 kg/cm2) | 1no. |
| NL 5016 X / 002 – P 003 | Vane (Measuring Range 0 – 2.5 kg/cm2) | 1no. |
For detailed specifications refer to the Product Brochure.
