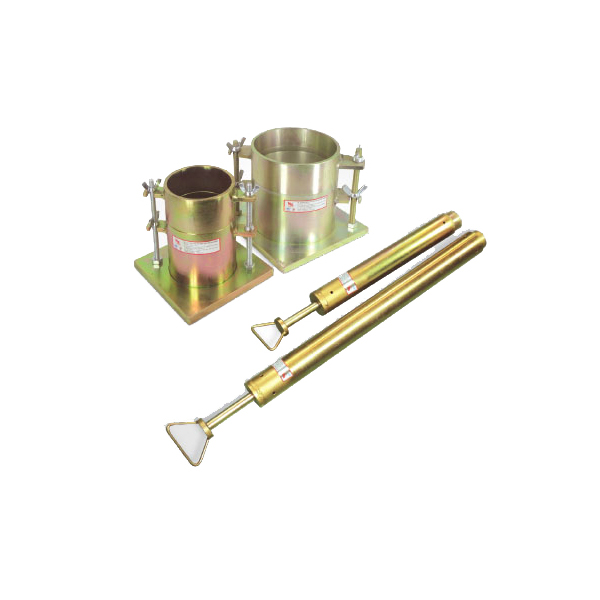

Proctor Test Apparatus
Our Price
- All compaction equipment manufacture from platen heavy duty steel to protect against corrosion and rusty.
- Standard : BS 1377/1924, ASTM D558/698/, AASHTO T99/T134, EN 13286-2
Ready to Ship
Description
BS Standard
NL 5011 X / 001 – A 001 |
Standard Proctor Mould |
| Body Diameter (Id x H) | Ø 105 mm with Body Height 115.5 mm |
| Volume | 1000 ml |
| Approx. Weight | 6 kg |
NL 5011 X / 001 – A 002 |
Standard Proctor Rammer |
| Specification | 2.5 kg – 300 mm Fall. Ø 50 mm |
| Dimension | Ø 60 mm x 565 mm |
| Approx. Weight | 4 kg |
NL 5011 X / 001 – A 003 |
Modified Proctor Rammer |
| Specification | 4.5 kg – 450 mm Fall. Ø 50 mm |
| Dimension | Ø 60 mm x 820 mm |
| Approx. Weight | 7 kg |
For detailed specifications refer to the Product Brochure.
NL Scientific
Proctor Test Apparatus
All compaction equipment manufacture from platen heavy duty steel to protect against corrosion and rusty.
